Unicorn Madrid
Berths
4
Axle
Single
Shipping Length
6.881m / 22′7″
Internal Length
5.667m / 18′7″
Overall Width
2.264m / 7′5″
MTPLM
1500kg
MRO
1348kg
more info
Payload
152kg
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- NEW vertical front infinity window and moulded surround with integral task lighting and speakers
- NEW standard ‘Chiswick’ soft furnishings
- NEW optional ‘Temple’ soft furnishings (cost option)
- NEW Bailey ‘Light Oak’ furniture finish
- NEW streamline front corner lockers
- NEW dual finish ‘Satin Cashmere’ British design overhead curved locker doors with ‘Light Oak’ contrasting stripe
- NEW front corner wall-mounted soft touch storage pouches
- NEW conventional sprung cushion construction with knee roll base cushions and back rests, featuring premium quality fabrics
- NEW branded DAB Radio with USB connection point and Bluetooth capability
- ALDE touch screen user-friendly control panel with back up battery for uninterrupted programming
- NEW branded Perspex kitchen splashback with chrome detailing
- Soft close kitchen drawers with cutlery tray
- Drop down hob cover worktop
- Thetford dual fuel hob with electric hotplate and three gas burners
- NEW 700 watt Dometic microwave oven with non-moving ceramic hot plate
- Large fully lined square shower cubicle with single piece door and integral lighting
- NEW Belfast style washroom hand basin with swan neck tap and full decorative splashback
- NEW backlit washroom mirror
- NEW fold-out pull-up bunk
- Up to four USB sockets in directional spotlights and New wall mounted sockets
- NEW high security door lock
- NEW pre-wired for WiFi (Retailer fit cost option)
i

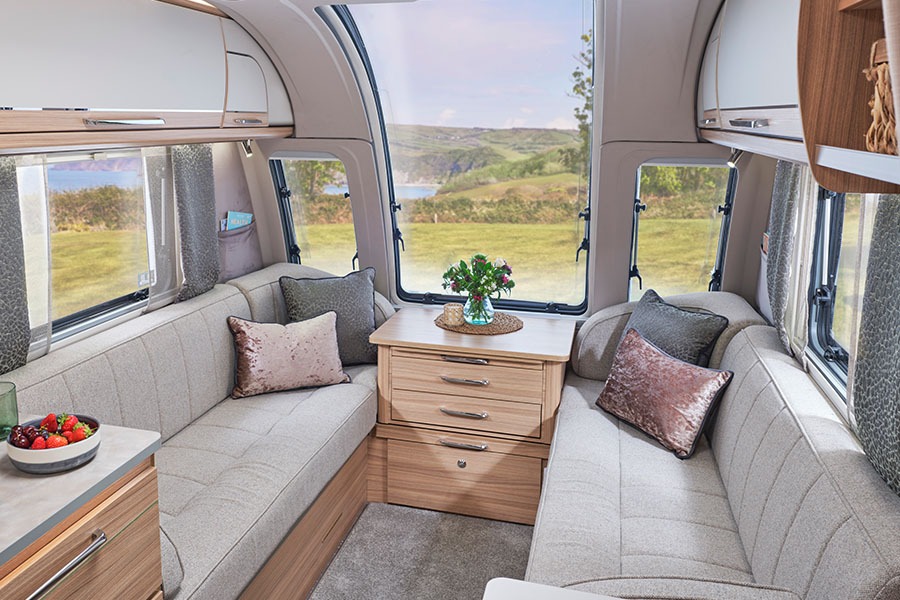

Unicorn Madrid in optional 'Temple' soft furnishings
i

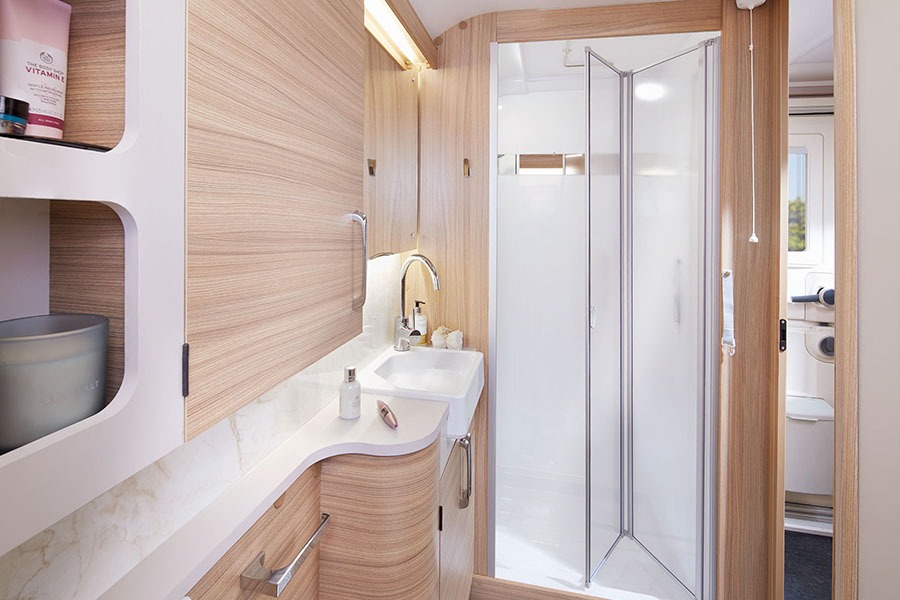

Unicorn Madrid bathroom with large white fully lined square shower cubicle with bi-fold partition door and integral lighting
i

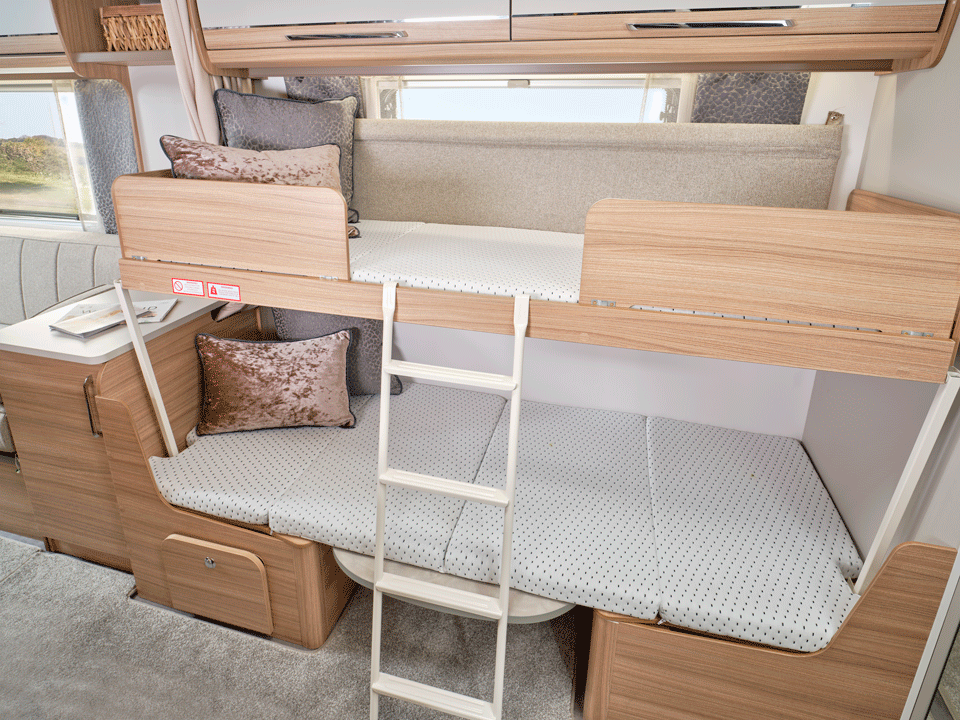

Fold out pull-up bunk with partition privacy curtain
i

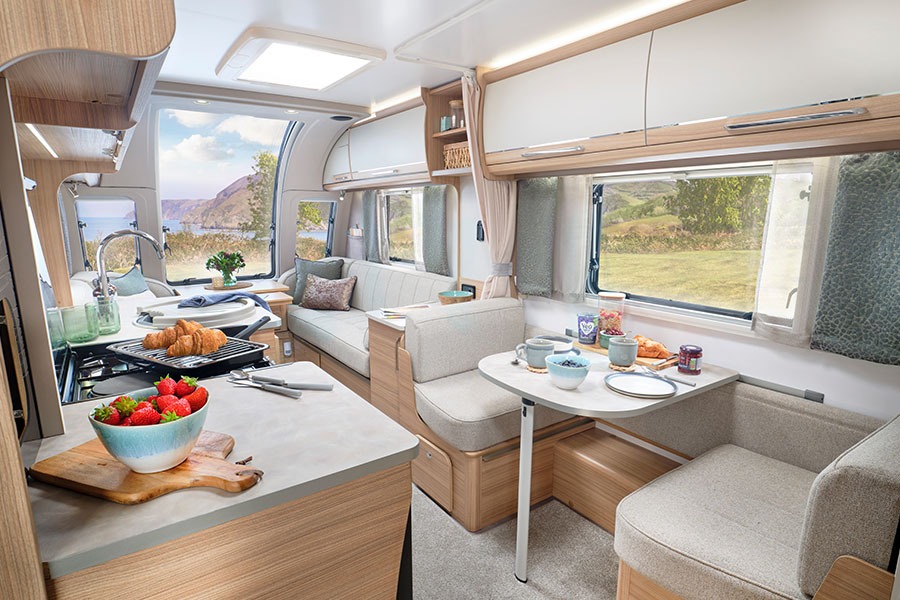

Unicorn Madrid side dinette
i

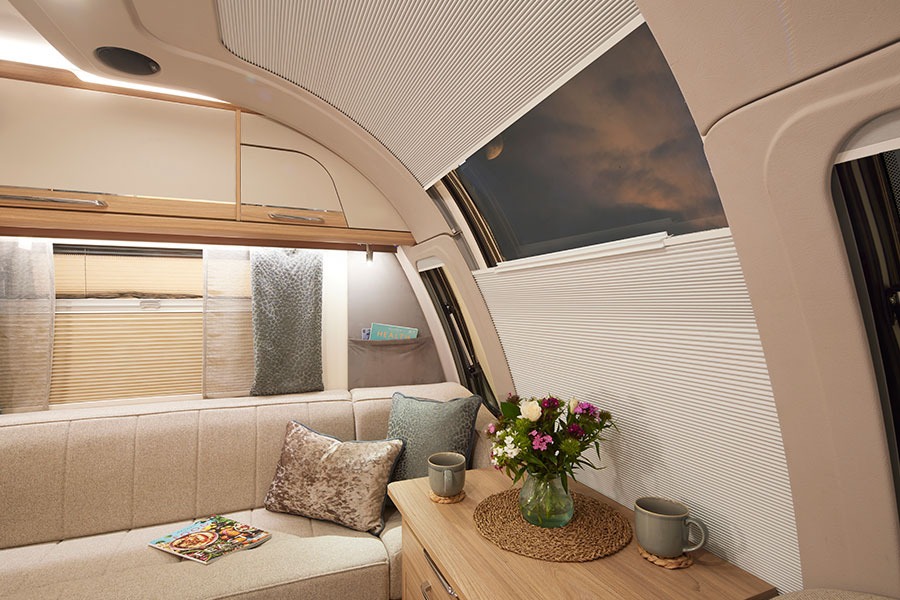

Two-part pleated blind to vertical front infinity window
i
Wardrobe with integrated lighting, rail, shelves and table storage
Details
- Aerodynamic GRP skinned ‘Polar White’ Alu-Tech bodyshell
- Contrasting gold and bronze exterior graphics scheme with resin badging
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Five part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a polystyrene insulation core and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- Floor panel built using a BWP plywood skin, timber frame and a high-density Styrofoam insulation core
- EN-1645-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing
- AL-KO one-piece galvanised steel chassis, axle, running gear, braking system and heavy-duty corner steadies
- ‘Silver’ 15” (single axle models) or 14” (twin-axle models) TUV tested alloy wheels with premium branded tyres
- Single piece front impact resistant bumper with integral chrome capped grab handles and step-up a-frame fairing
- Single piece rear impact resistant bumper with integral chrome capped grab handles and light clusters
- Vertical rear pillar mouldings with integral chrome capped grab handles
- Hartal two-part habitation door with window, waste bin and pleated full-length door flyscreen
- LED awning light above external door and LED offside exterior service light
- Large Polyplastic double glazed opening vertical front infinity window and Polyplastic double glazed front side windows
- Moulded interior front window surround with integral task lighting, speakers, flyscreens and pleated blinds (models built from Jan 2024 onwards)
- Polyplastic double glazed windows throughout the habitation area
- Remis pleated blinds and flyscreens to all side and rear windows
- Remis splash proof roller blind to kitchen window
- Midi and mini Heki rooflights located throughout the habitation area
- Exterior access storage locker
- Exterior access through-boot (model specific)
- Exterior access centrally mounted gas locker for enhanced towing stability and reduced nose weight
- Bailey ‘Light Oak’ and ‘Satin Cashmere’ furniture finishes
- Bailey ‘Light Oak’ and ‘Satin Cashmere’ curved overhead locker doors with chrome detailing and handles
- Spacious overhead storage lockers with structural dividers for greater load bearing capacity
- Premium quality chrome finish fixture and fittings
- Standard ‘Chiswick’ soft furnishings with co-ordinating curtain panels, one bolster cushion and four scatter cushions
- Optional ‘Temple’ soft furnishings with co-ordinating curtain panels, one bolster cushions and four scatter cushions
- Conventional sprung cushion construction with fully sprung knee rolled base cushions, foam filled back rests and corner sections all featuring premium quality fabrics
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled backrest and seat ventilation boards for enhanced comfort and heating efficiency
- Slatted front bed make-up system on easy-glide track
- Two-drawer front chest with slide out occasional table and soft close drawers
- Freestanding dining table in Bailey ‘Light Oak’ finish with dedicated storage location
- Wall mounted side table in ‘Nebula Silver’ finish with dedicated storage location (model specific)
- ‘Hazelnut’ split section loose fit drop in carpets
- ‘Dark Oak’ finish durable floor vinyl
- Entrance door mat
- Status 570 telescopic directional digital television aerial
- Up to two TV stations with wall mounts, 230v, 12v and aerial sockets
- Fitted branded DAB Radio with USB connection point and Bluetooth capability
- Pre-wired for optional roof mounted Avtex mobile wi-fi system (Retailer fit cost option)
- ‘Nebula Silver’ kitchen worktop laminate finish
- Drop down kitchen worktop extension in ‘Nebula Silver’ finish (model specific)
- Drop down hob cover worktop in matching ‘Nebula Silver’ finish
- Stainless steel round kitchen sink with concealed fixings, swan neck mixer tap, washing up bowl, drainer and chopping board
- Branded Perspex kitchen splashback with chrome detailing
- Bailey ‘Light Oak’ kitchen units featuring soft close drawers with chrome finish handles
- Fitted kitchen wine rack (model specific)
- Dometic 103 litre refrigerator with 12 litre freezer compartment (model specific)
- Thetford 137 litre tower refrigerator with 15 litre freezer compartment (model specific)
- Dometic 153 litre fridge freezer with universal handed door mechanism (twin axle models only)
- Thetford combined oven, grill and hob with electronic ignition and flame failure device
- Thetford dual-fuel hob with electric hotplate and three gas burners
- Branded flatbed microwave oven with digital controls
- Bailey ‘Light Oak’ and ‘Satin Cashmere’ bedroom furniture
- ‘Nebula Silver’ cabinet surfaces (model specific)
- Aluminium fixed bed frames with sprung beech slat bases and hinged tops for enhanced comfort and ease of access to under bed storage spaces (model specific)
- Superior foam fixed bed mattress construction (model specific)
- Full width soft touch fixed bed headboards (model specific)
- Twin floating wardrobes with bedside storage units beneath (model specific)
- Wall mounted vanity mirror
- Bailey ‘Light Oak’ and ‘Satin Cashmere’ bathroom furniture with ‘Nebula Silver’ work surfaces, decorative splash back and integral storage
- Wall mounted vanity cupboard with mirrored door (model specific)
- Backlit washroom mirror (model specific)
- Full height floor to ceiling wardrobe (model specific)
- Onboard shower with fitted shower tray, Ecocamel shower head, riser bar and combination mixer tap
- Gloss white shower cubicle with bi-fold partition door, integral storage and lighting
- Belfast style washroom hand basin with swan-neck mixer tap
- Two wall mounted towel hooks
- Polyplastic double glazed window with flyscreen and blind
- Micro Heki rooflight with night blind and drop-down towel rail
- Thetford 12v electric flush toilet with removable cassette on wheels
- Electrical control unit with simple controls for heating and hot water systems
- 230v power inlet for mains hook up with 25 metre mains connecting lead
- Exterior 230v socket with integrated aerial jack outlet
- Truma 100-watt lightweight flexible solar panel
- 230v power supply with up to six interior sockets and four USB points
- Switch mode battery charger with 20amp output
- 12v internal LED task and ambient lighting system including ceiling mounted down-lighters and directional spotlights
- Pre-wired for optional motor mover fitment (Retailer fit cost option)
- Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating
- Dual fuel 6.4kw gas and up to 3.15kw electric power sources
- Alde touch screen user-friendly control panel with back up battery for uninterrupted programming
- Washroom panel radiator
- Provision for 2 x 6kg gas bottles with fitted butane/propane 30mb gas regulator in dedicated locker compartment
- Exterior gas BBQ point
- 40 litre inboard freshwater tank (twin axle models only)
- Pressurised hot and cold freshwater system with Whale high flow self-priming submersible pump
- Inboard rigid pipe waste plumbing system
- AL-KO ATC trailer control system
- AL-KO AKS 3004 stabiliser
- AL-KO shock absorbers
- WSL individually laser balanced wheels fitted with premium tyres and anti-tamper WSL safety bolts
- AL-KO chassis mounted spare wheel carrier and steel spare wheel
- AL-KO caravan jack
- AL-KO Secure portable wheel lock (two for twin axle models)
- TRACKER Monitor Thatcham CAT S7 approved Stolen Vehicle Recovery System (including first 3 months subscription fee)
- TRACKER PIR activated intruder alarm featuring a tilt sensor and key fob operation
- High security exterior door lock with one-key operation throughout
- CRiS identity number anti-tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm and carbon monoxide alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- 6-year body integrity warranty provided by Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 3-year manufacturers’ warranty provided Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 4-year insurance backed extension to body integrity warranty (making 10 years in total) also available as a cost option
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 3-year insurance backed extension to manufacturers’ warranty (making 6 years in total) also available as a cost option
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- Avtex mobile wi-fi system (Retailer fit)
- ‘Temple’ soft furnishings
Year last produced
2024
Range
Unicorn
Model
Madrid
Series
Series 5
Berths
4
Internal Length
5.667m / 18′7″
Shipping Length
6.881m / 22′7″
Overall Width
2.264m / 7′5″
Overall Height
2.669m / 8′9″
Internal Headroom
1.960m / 6′5″
Awning Size
1003cm
Tyre Sizes
195/70R15C
MTPLM
1500kg
MRO
1348kg
Total User Payload
152kg
Bed Sizes:
Front Double
1.93m x 1.52m / 6'4" x 4'11" Measured from the widest point
Front N/S Single
1.95m x 0.63m / 6'5" x 2'1" Measured from the widest point
Front O/S Single
1.95m x 0.63m / 6'5" x 2'1" Measured from the widest point
Rear O/S Single
1.83m x 0.64m / 6'0" x 2'1" Measured from the widest point
Rear O/S Fold Out Bunk
1.79m x 0.60m / 5'10" x 1'11" Measured from the widest point
