Unicorn Merida
Berths
2
Axle
Single
Shipping Length
6.190m / 20′4″
Internal Length
4.665m / 15′4″
Overall Width
2.280m / 7′6″
MTPLM
1330kg
MRO
1217kg
more info
Payload
113kg
upgrade info
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- NEW ‘Black Edition’ graphics scheme
- Truma 100 watt solar panel
- NEW design ‘Graphite’ finish 14” TUV tested alloy wheels
- Vertical front skylight and rooflight surround with integral task lighting
- Standard ‘Brompton’ soft furnishings
- NEW optional ‘Alperton’ soft furnishings
- Overhead lockers with split level storage
- NEW dual finish ‘Cream’ gloss Italian design overhead curved locker doors with ‘Canvas’ textured contrasting stripe
- NEW mirrored front corner locker sections
- Front corner wall-mounted storage pouches
- Conventional cushion construction with ‘Honeycore’ foam knee rolled base cushions and one-piece back rests
- Two-drawer front chest with slide out occasional table and soft close drawers
- Freestanding table with dedicated storage
- Branded DAB Radio/CD/MP3 player with USB connection point and Bluetooth capability
- Alde touch screen user-friendly control panel with back up battery for uninterrupted programming
- NEW stainless steel round kitchen sink with concealed fixings, swan-neck mixer tap, washing up bowl and drainer
- NEW branded Perspex kitchen splashback with chrome detailing
- Soft close kitchen drawers with cutlery tray partition
- Drop down hob cover worktop
- Thetford dual fuel hob with electric hotplate and three gas burners
- Branded 800 watt microwave oven
- Dometic 103 litre tower refrigerator
- Large ‘Granite Stone’ fully lined square shower cubicle with bi-fold partition door and integral lighting
- Pedestal washroom hand basin with ceramic ball mixer tap
- Full width backlit washroom mirror
- Built in Thetford C-260 cassette toilet with remote header tank
- Easy access linen basket
i

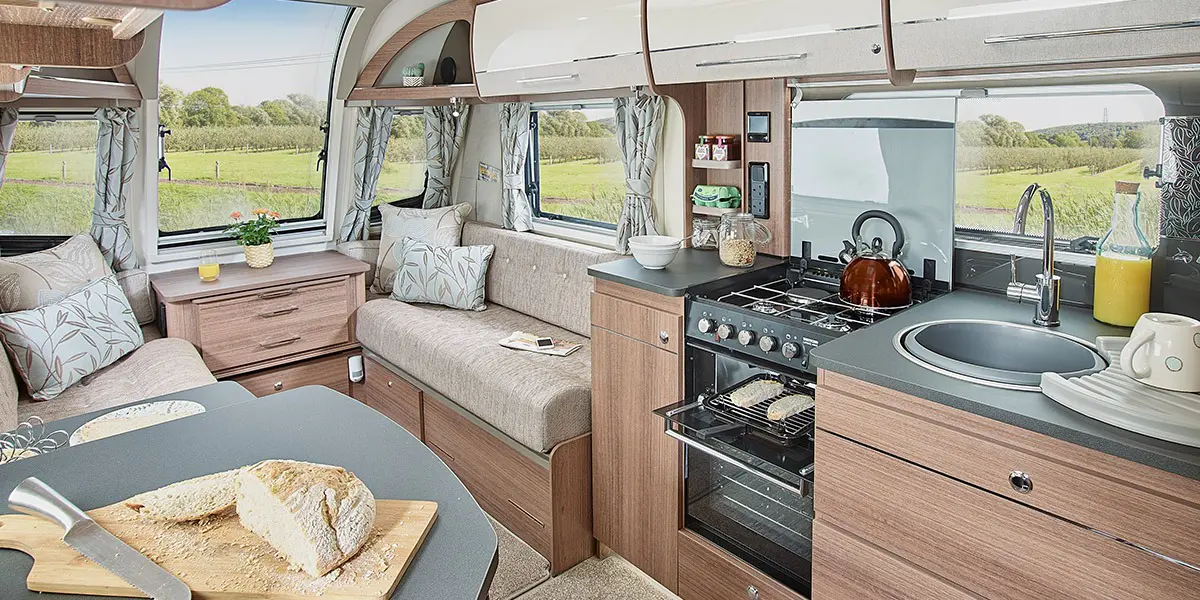

Unicorn Black Edition Merida kitchen with Thetford dual fuel hob with electric hotplate and 3 gas burners
i

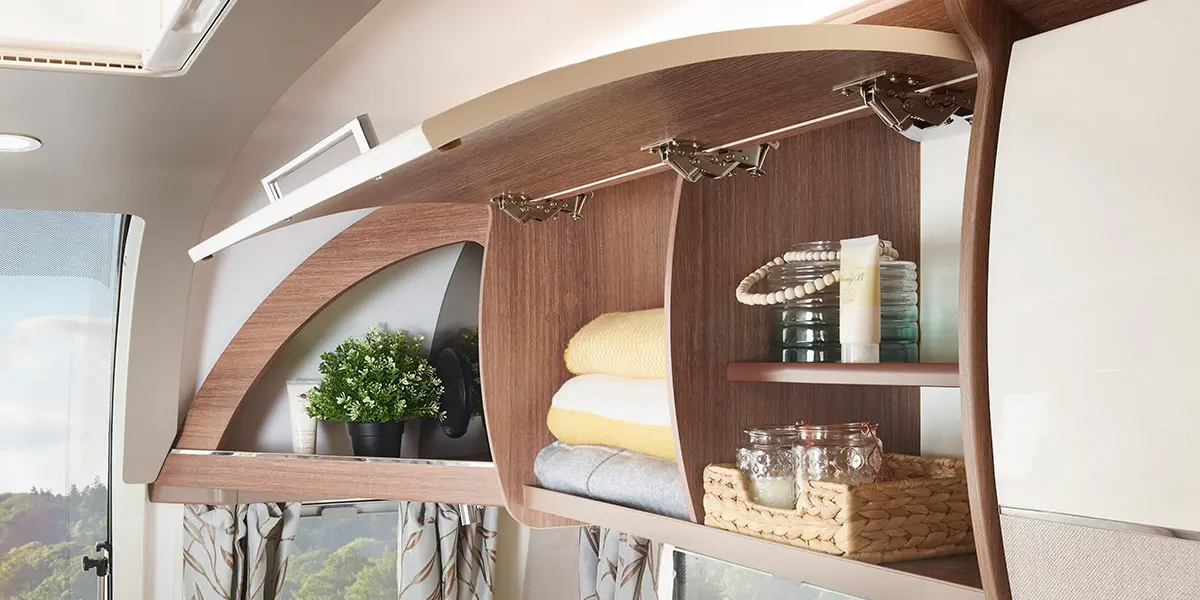

Overhead lockers with split level storage (all models)
i

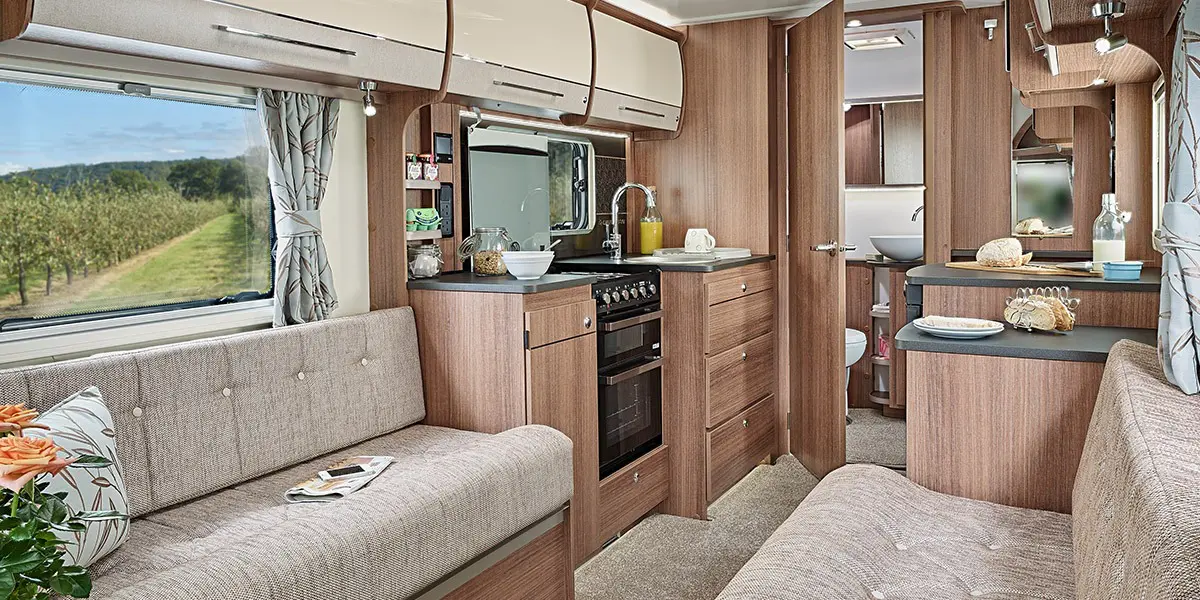

Unicorn Black Edition Merida in standard ʻBromptonʼ soft furnishings
i

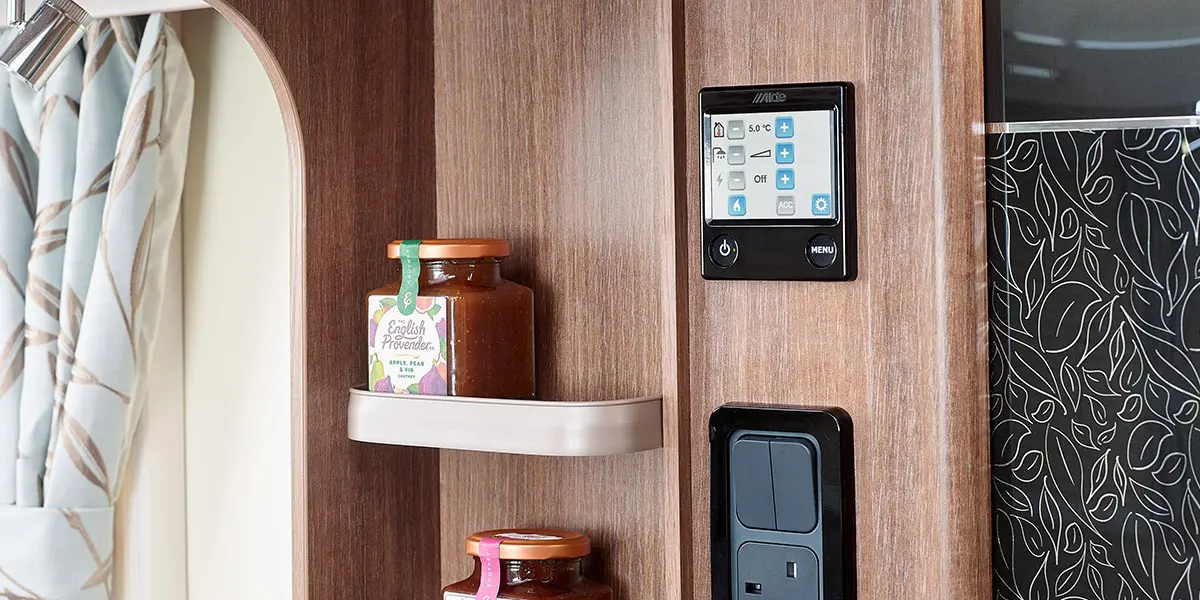

Alde touch screen user-friendly control panel with back up battery for uninterrupted programming (all models
i
Drop down hob cover worktop (all models)
i

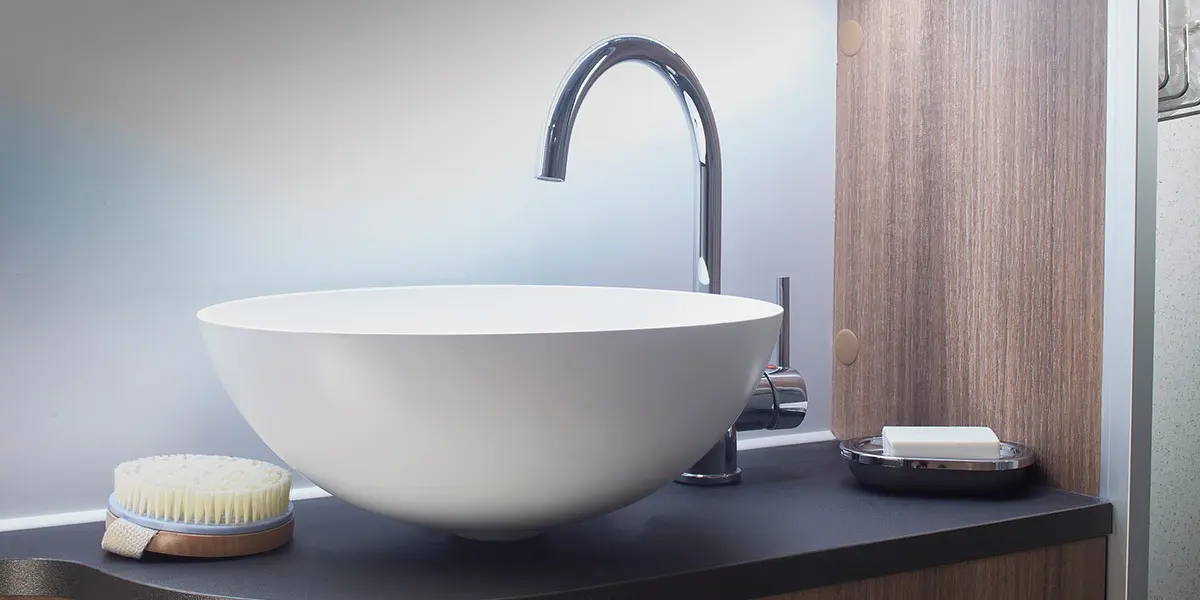

Pedestal washroom hand basin with ceramic ball mixer tap (all models)
Details
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Five part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
- High performance GRP skinned ‘Polar White’ Alu-Tech bodyshell
- AL-KO one-piece galvanised steel chassis, braking system and running gear
- Aero-dynamic & aesthetically enhanced rear bodyshell profile
- Flush-fit single piece front impact resistant bumper with integral grab handles and step up a-frame fairing
- Flush-fit single piece rear impact resistant bumper with full width grab rail
- NEW design ‘Graphite’ finish 14” TUV tested alloy wheels
- Front corner steadies and heavy duty rear corner steadies
- Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
- Modern look Bailey branded front window with darker screen print
- Remis 2-part pleated flyscreen and blind to vertical skylight and Remis pleated flyscreen and blinds to principal windows
- Vertical front skylight and rooflight surround with integral task lighting
- Midi and mini Heki rooflights located throughout the habitation area
- Hartal GRP skin two-part large aperture exterior door with window, waste bin & dustpan and brush and Hartal pleated full length flyscreen
- LED awning light with integral water management system
- Easy access exterior storage lockers with moulded interior liner
- Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
- NEW ‘Black Edition’ graphics scheme
- Bailey ‘Eucalyptus’ furniture finish
- NEW dual finish ‘Cream’ gloss Italian design overhead curved locker doors with ‘Canvas’ textured contrasting stripe
- Structural locker dividers with greater load bearing capacity
- Premium quality chrome finish fixture and fittings
- NEW mirrored front corner locker sections
- ‘Basalt Stone’ finish freestanding table with dedicated storage
- 2-drawer front chest with slide out occasional table and soft close drawers
- Slatted front bed make-up system on easy-glide track
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled backrest and seat ventilation boards for enhanced heating efficiency
- Conventional cushion construction with ‘Honeycore’ foam knee rolled base cushions and one-piece back rests featuring premium quality fabrics
- Standard ‘Brompton’ soft furnishings with co-ordinating curtains, two bolster cushions, two large square and two small rectangular scatter cushions
- NEW optional ‘Alperton’ soft furnishings with co-ordinating curtains, two bolster cushions, two large square and two small rectangular scatter cushions
- Integrated curtain pelmet
- Front corner wall-mounted storage pouches
- Leatherette covered interior grab handle for ease of access in and out of the caravan (model specific)
- ‘Chocolate Brown’ deep pile loose fit drop in carpets
- Textured finish durable floor vinyl
- Entrance door mat
- External satellite connection point
- Status 570 telescopic directional digital television aerial
- Up to two TV stations with 230v, 12v and two aerial sockets
- Branded DAB Radio/CD/MP3 player with USB connection point & Bluetooth capability
- Beech slat bed bases with sprung hinged tops for extra comfort and ease of access (model specific)
- Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
- Superior foam fixed bed mattress construction (model specific)
- Padded headboards in fixed beds (model specific)
- ‘Basalt Stone’ finish kitchen worktop laminate
- Drop down kitchen worktop extension (model specific)
- Drop down hob cover worktop in matching ‘Basalt Stone’ finish
- NEW stainless steel round kitchen sink with concealed fixings, swan-neck mixer tap, washing up bowl and drainer
- NEW branded Perspex kitchen splashback with chrome detailing
- Remis splash proof roller blind to kitchen window
- Soft close kitchen drawers with cutlery tray partition
- Built-in kitchen wine storage cabinet
- Dometic 103 litre (Merida)/134 litre tower refrigerator & 12 litre freezer with electronic ignition (single axle models)
- Dometic 190 litre tower refrigerator including 35l freezer with electronic ignition (twin axle models)
- Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
- Thetford dual fuel hob with electric hotplate and 3 gas burners
- Branded 800 watt microwave oven
- Solid domestic style washroom door with domestic metal handle
- ‘Basalt Stone’ finish washroom worktop laminate
- Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
- Large ‘Granite Stone’ fully lined square shower cubicle with bi-fold partition door and integral lighting
- Ceiling mounted pull down hanging rail on shower hood
- In-shower hanging toiletry storage caddy
- Pedestal washroom hand basin with ceramic ball mixer tap
- Full width backlit washroom mirror (model specific)
- Easy access linen basket in washroom (model specific)
- Built in Thetford C-260 cassette toilet with remote header tank and recessed toilet roll storage shelf (model specific)
- 230v power inlet for mains hook-up
- Truma 100 watt solar panel
- Exterior 230v socket
- 12v internal lighting system including LED down-lighters and directional spotlights plus ambient over locker and floor level lighting
- 230v power supply with up to 7 interior sockets
- Up to 4 USB sockets in directional spotlights
- Centrally located electrical control panel
- Centrally located under floor leisure battery storage locker
- Domestic style consumer unit with dedicated access door
- Switch mode battery charger with 20 amp output
- RCD/MCB protection for mains electric system
- Pre-wiring for motor mover (retailer fit)
- 25 metre mains connecting lead
- Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating
- Alde 3020 boiler for improved fuel economy
- Dual fuel 6.4kw gas and up to 3.15kw electric power sources
- Alde touch screen user-friendly control panel with back up battery for uninterrupted programming
- Washroom panel radiator
- On-board 40L water tank (twin axle models only)
- Propane/Butane 30mb gas regulator mounted in gas locker compartment
- Whale high flow submersible pump
- Inboard rigid pipe waste plumbing system
- Truma gas BBQ point
- AL-KO ATC trailer control system
- AL-KO AKS 3004 stabiliser
- AL-KO shock absorbers
- WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
- TyrePal Tyre Pressure Monitor System (TPMS)
- Wind down floor mounted spare wheel carrier and spare wheel (steel spare wheel)
- AL-KO caravan jack
- AL-KO Secure portable wheel lock (two for twin axle models)
- TRACKER Monitor Thatcham CAT 7 approved Stolen Vehicle Recovery System (including first 3 months subscription fee)
- TRACKER PIR activated intruder alarm featuring a tilt sensor and key fob operation
- High security one-key operation throughout
- CRiS identity number anti-tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm
- Carbon monoxide alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- Supplied with a 6-year transferable bodyshell integrity warranty and a 3-year transferable manufacturers warranty*
- 4-year transferable extension to bodyshell integrity warranty (making 10 years in total) and/or 3-year transferable extension to manufacturer’s warranty (making 6 years in total) available as cost options*
- *Terms and conditions apply. Please visit baileyofbristol.co.uk/warranties-servicing for more information
- NEW optional ‘Alperton’ soft furnishings
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
Year last produced
2021
Range
Unicorn
Model
Merida
Series
Black Edition
Berths
2
Internal Length
4.665m / 15′4″
Shipping Length
6.190m / 20′4″
Overall Width
2.280m / 7′6″
Overall Height
2.610m / 8′7″
Internal Headroom
1.960m / 6′5″
Awning Size
917cm
Tyre Sizes
185/R14
MTPLM
1330kg
MRO
1217kg
Total User Payload
113kg
Bed Sizes:
Front Double
1.96m x 1.51m (6' 5" x 4' 11") Measured from the widest point
Front N/S Single
1.94m x 0.63m (6' 4" x 2' 1") Measured from the widest point
Front O/S Single
1.94m x 0.63m (6' 4" x 2' 1") Measured from the widest point
