Phoenix 440
Berths
4
Axle
Single
Shipping Length
6.882m / 22′7″
Internal Length
5.351m / 17′7″
Overall Width
2.212m / 7′3″
MTPLM
1322kg
MRO
1172kg
more info
Payload
150kg
upgrade info
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- Interior grab handle for ease of access in and out of the caravan
- Opening vertical front skylight
- Vertical front skylight surround with integral task lighting
- ‘Brockwell’ soft furnishings with co-ordinating curtains
- ‘Soft Truffle’ loose fit drop in carpets
- ‘Brushed Champagne’ Italian design single span overhead locker doors with over-locker LED lighting
- USB sockets in directional spotlights
- NEW conventional cushion construction with fully sprung knee rolled base cushions and square back rests
- Two-drawer front chest with slide out occasional table and soft close drawers
- Branded radio, CD, MP3 player with MP3 player connection point
- Truma user-friendly digital control panel with adjustable fan and water boost functions
- Dometic 103 litre refrigerator and 12 litre freezer with electronic ignition
- Thetford hob with four gas burners
- Drop down hob cover worktop
- Stainless steel square kitchen sink with mixer tap and drainer
- Branded 800 watt microwave oven
- ‘Granite Stone’ fully lined shower cubicle with bi-fold partition door and integral lighting
- Full width washroom mirror
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (cost option)
- Dressing pack consisting of four scatter cushions, two bolsters, two pure wool throws and washroom carpet (cost option)
i

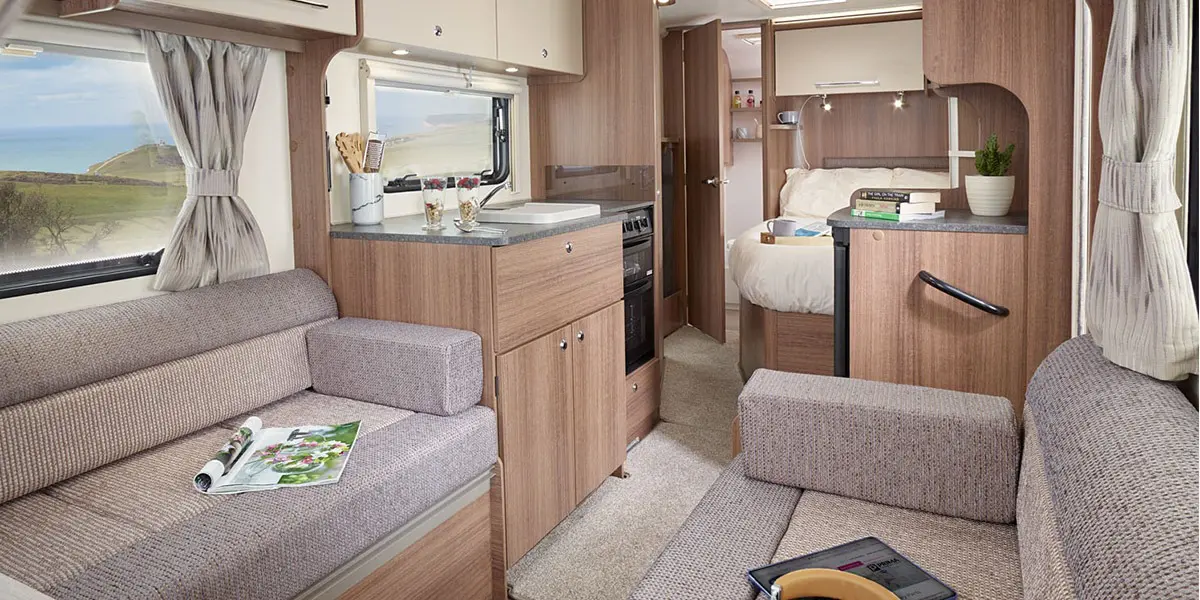

Phoenix 440 lounge through to bedroom
i

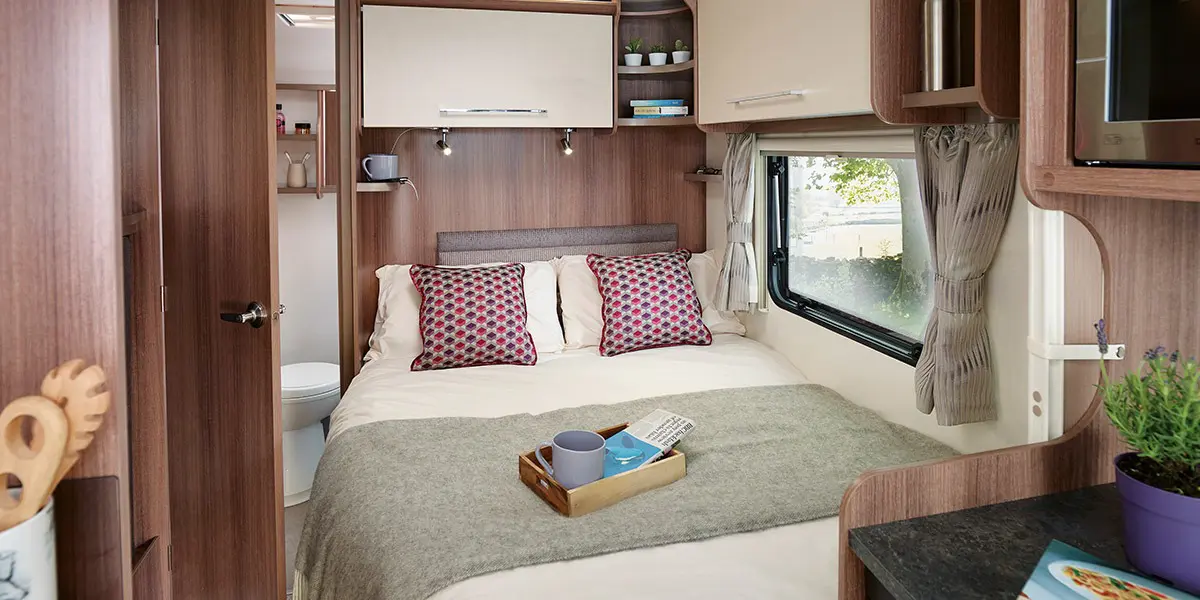

Phoenix 440 with bespoke caravan bedding set to co-ordinate with caravan soft furnishings (cost option)
i

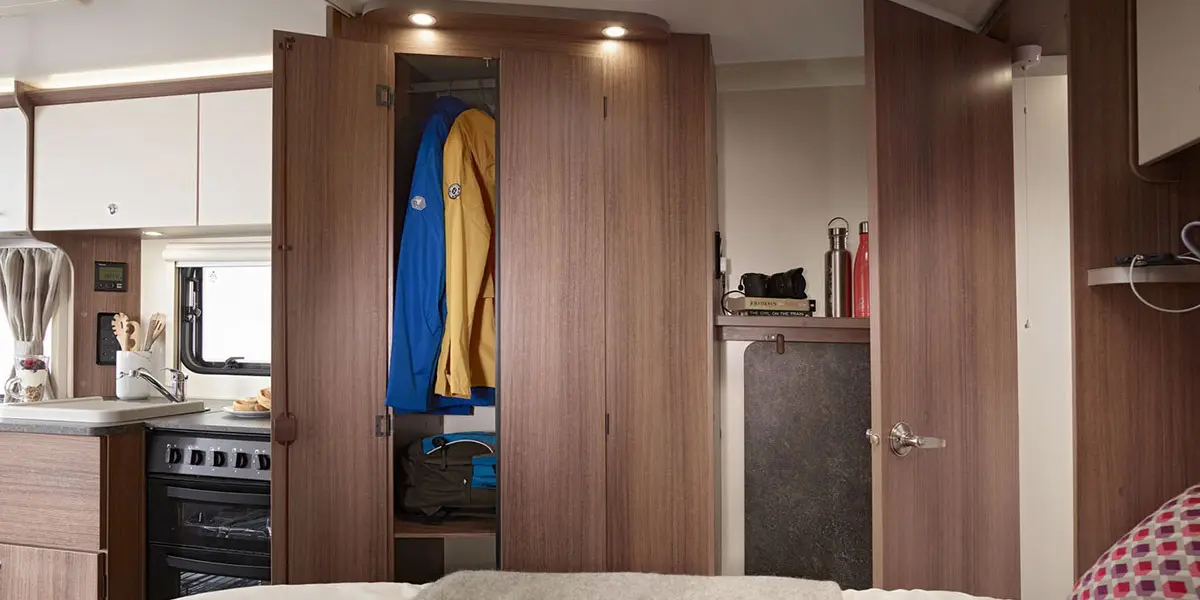

Phoenix 440 wardrobe and dedicated table storage
i
Phoenix 440 bathroom with ʻGranite Stoneʼ fully lined shower cubicle with bi-fold partition door and integral lighting
i

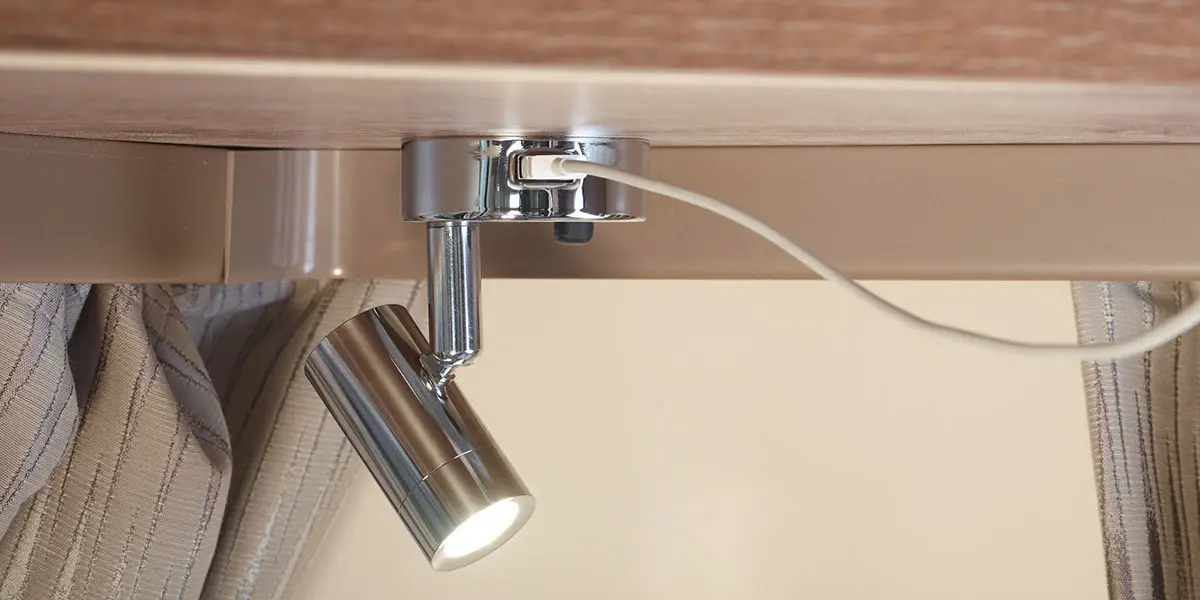

USB socket in directional spotlight (all models)
Details
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Five part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
- High performance GRP skinned ‘Polar White’ Alu-Tech bodyshell
- AL-KO one-piece galvanised steel chassis, braking system and running gear
- Flush-fit front and rear impact resistant bumper with integral grab handles and step up a-frame fairing
- Aero-dynamic & aesthetically enhanced rear bodyshell profile
- ‘Silver’ 14” TUV tested alloy wheels
- Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
- Modern look Bailey branded front window with darker screen print
- Vertical front skylight surround with integral task lighting
- Remis pleasted flyscreen and blinds to vertical skylight and front windows
- Remis cassette flyscreen and blinds to principal windows
- Midi and mini Heki rooflights located throughout the habitation area
- Hartal GRP skin two part large aperture exterior door with coat hook and Hartal pleated full length flyscreen
- LED awning light with integral water management system
- Easy access exterior storage locker
- Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
- Co-ordinating graphics scheme
- Bailey ‘Eucalyptus’ furniture finish
- ‘Brushed Champagne’ Italian design single span overhead lockers doors with over-locker LED lighting
- Premium quality, domestic style fixtures and fittings in polished chrome finish
- ‘Nordic Stone’ finish freestanding table with dedicated storage
- 2-drawer front chest with slide out occasional table and soft close drawers
- Slatted front bed make-up system on easy-glide track
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled backrest and seat ventilation boards for enhanced heating efficiency
- Conventional cushion construction with fully sprung knee rolled base cushions and square back rests featuring premium quality fabrics
- ‘Brockwell’ soft furnishings with co-ordinating curtains
- Integrated curtain pelmet
- Interior grab handle for ease of access in and out of the caravan
- ‘Soft Truffle’ loose fit drop in carpets
- Textured finish durable floor vinyl
- Entrance door mat
- Status 570 telescopic directional digital television aerial
- Up to two TV stations with 230v, 12v and one aerial socket
- Branded Radio, CD, MP3 player with iPod, MP3 player connection point
- Branded dual cone stereo speakers for superior sound quality
- Beech slat bed bases with sprung hinged tops for extra comfort and ease of access
- Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
- Superior foam fixed bed mattress construction (model specific)
- Padded headboards in fixed beds (model specific)
- ‘Nordic Stone’ kitchen worktop laminate
- Drop down hob cover worktop in matching ‘Nordic Stone’ finish
- Stainless steel square kitchen sink with mixer tab and drainer
- Dometic 103 litre refrigerator & 12 litre freezer with electronic ignition (single axle models)
- Dometic 134 litre tower refrigerator & 12 litre freezer with electronic (twin axle models)
- Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
- Thetford hob with 4 gas burners
- Branded 800 watt microwave oven
- Solid domestic style washroom door with domestic metal handle
- ‘Nordic Stone’ washroom worktop laminate
- Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
- ‘Granite Stone’ fully lined shower cubicle with bi-fold partition door and integral lighting
- Bathroom storage cupboard
- Full width washroom mirror (model specific)
- Washroom hand basin and mixer tab
- Thetford C-260 cassette toilet with integrated header tank (model specific)
- Built in Thetford C-260 cassette toilet with remote header tank (model specific)
- 230v power inlet for mains hook-up
- 12v internal lighting system including LED down-lighters and directional spotlights
- 230v power supply with up to 5 interior sockets
- Two USB sockets in directional spotlights
- Centrally located under floor leisure battery storage locker
- Domestic style consumer unit
- Switch mode battery charger with 20 amp output
- RCD/MCB protection for mains electric system
- Pre-wiring for motor mover (retailer fit)
- 25 metre mains connecting lead
- Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources (single axle models)
- Truma Combi 4 heating system, combined water and room heating with dual fuel 4kw gas and 1.8kw electric power sources (twin axle models)
- Truma user friendly digital control panel with adjustable fan and water boost functions
- Propane/Butane 30mb gas regulator in gas locker compartment
- Truma Ultraflow submersible pump
- Outboard rigid pipe waste plumbing system
- AL-KO AKS 3004 stabiliser
- AL-KO wheel lock receiver (twin axle models only)
- WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
- Interior floor mounted spare wheel and tyre (steel wheel)
- High security one key operation throughout
- CRiS identity number anti tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm
- Carbon Monoxide Alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- AL-KO ATC trailer control system (factory fit)
- Truma iNet system (retailer fit)
- Dressing pack consisting of 4 scatter cushions, 2 bolsters, 2 pure wool throws and washroom carpet
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
Year last produced
2020
Range
Phoenix
Model
440
Series
Series 1
Berths
4
Internal Length
5.351m / 17′7″
Shipping Length
6.882m / 22′7″
Overall Width
2.212m / 7′3″
Overall Height
2.624m / 8′7″
Internal Headroom
1.960m / 6′5″
Awning Size
995cm
Tyre Sizes
185/R14C
MTPLM
1322kg
MRO
1172kg
Total User Payload
150kg
Bed Sizes:
Front Double
1.88m x 1.10m (6' 2" x 3' 7") Measured from the widest point
Front N/S Single
1.50m x 0.64m (4' 11" x 2' 1") Measured from the widest point
Front O/S Single
1.50m x 0.64m (4' 11" x 2' 1") Measured from the widest point
Rear Fixed Double
1.90m x 1.32m (6' 3" x 4' 4") Measured from the widest point
First time buyers
If you’re new to caravanning it can feel like there is a lot to learn and remember. We’ve put together these easy to follow guides to your first trip out in your new caravan to help you get up and running in no time.
Find a Retailer
The best place to find a pre-owned Bailey caravan is at one of our Approved Bailey Retailers.
New Model
If you are looking for a similar layout in our current ranges, the Phoenix+ 440 is the closest match
