Phoenix Plus
Berths
4
Axle
Single
Shipping Length
7.369m / 24′2″
Internal Length
5.841m / 19′2″
Overall Width
2.212m / 7′3″
MTPLM
1395kg
MRO
1240kg
more info
Payload
155kg
upgrade info
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- NEW ‘Dove Grey’ and ‘Polar White’ Alu-Tech Bodyshell
- NEW ‘Phoenix+’ graphics scheme
- NEW Silver finish interior grab handle for ease of access in and out of the caravan
- NEW Design ‘Silver’ finish 14” TUV tested alloy wheels
- Vertical front skylight surround with integral task lighting
- Truma user-friendly digital control panel with adjustable fan and water boost functions
- NEW ‘Chesham’ soft furnishings with co-ordinating curtains and two scatter cushions
- Conventional cushion construction with fully sprung knee rolled base cushions and square back rests
- NEW ‘Hazelnut’ loose fit carpet
- NEW Bailey ’Light Oak’ furniture finish
- NEW Ambient lighting in front corners
- USB sockets in directional spotlights
- NEW Branded DAB radio with USB connection point & Bluetooth capability
- Two-drawer front chest with slide out occasional table and soft close drawers
- NEW Dual finish Italian design overhead curved locker doors with ‘canvas’ textured contrasting stripe and over-locker LED lighting
- NEW Low level storage cupboard beneath front chest
- Thetford hob with four gas burners
- Dometic 103 litre refrigerator & 12 litre freezer
- NEW 700 watt Dometic microwave oven with non-moving ceramic hot plate
- NEW Stainless steel round kitchen sink with concealed fixings, mixer tap and drainer
- NEW Kitchen plate rack and cutlery tray
- Drop down hob cover worktop
- NEW Wall mounted kitchen worktop upstand
- Full width washroom mirror
- White gloss shower cubicle with bi-fold partition door and integral lighting
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (cost option)
- NEW pre-wired for WiFi (Retailer fit cost option 2022 season models only)
i
Phoenix+ 644 lounge featuring conventional cushion construction with fully sprung knee rolled base cushions and square back rests and premium quality fabrics
i

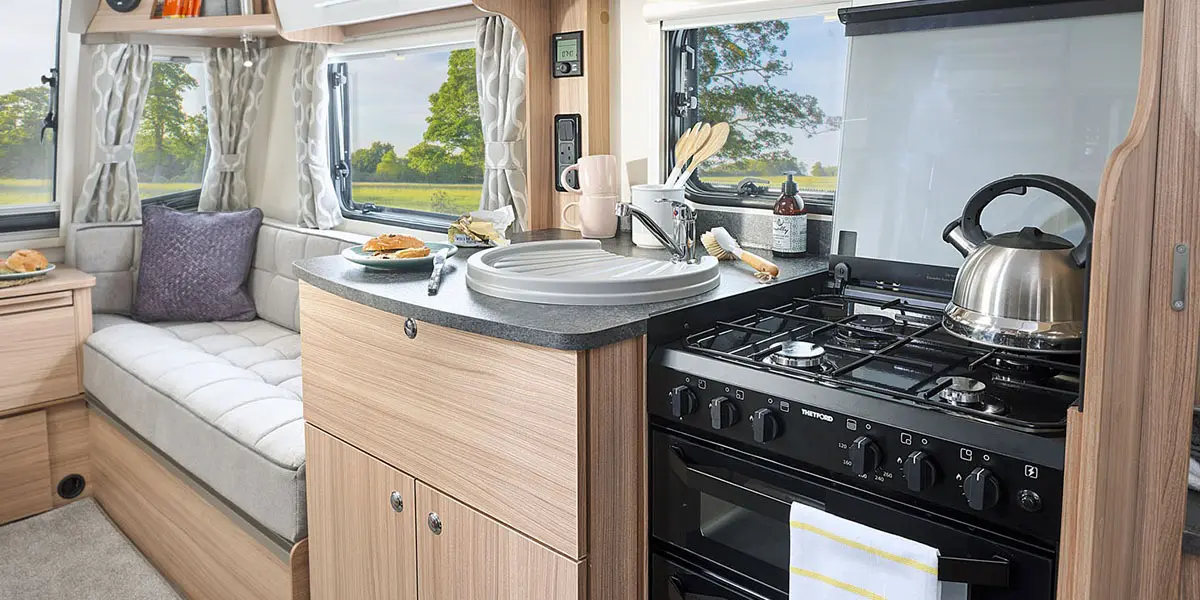

Phoenix+ 644 kitchen featuring Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
i
Branded DAB Radio with USB connection point and Bluetooth capability
i

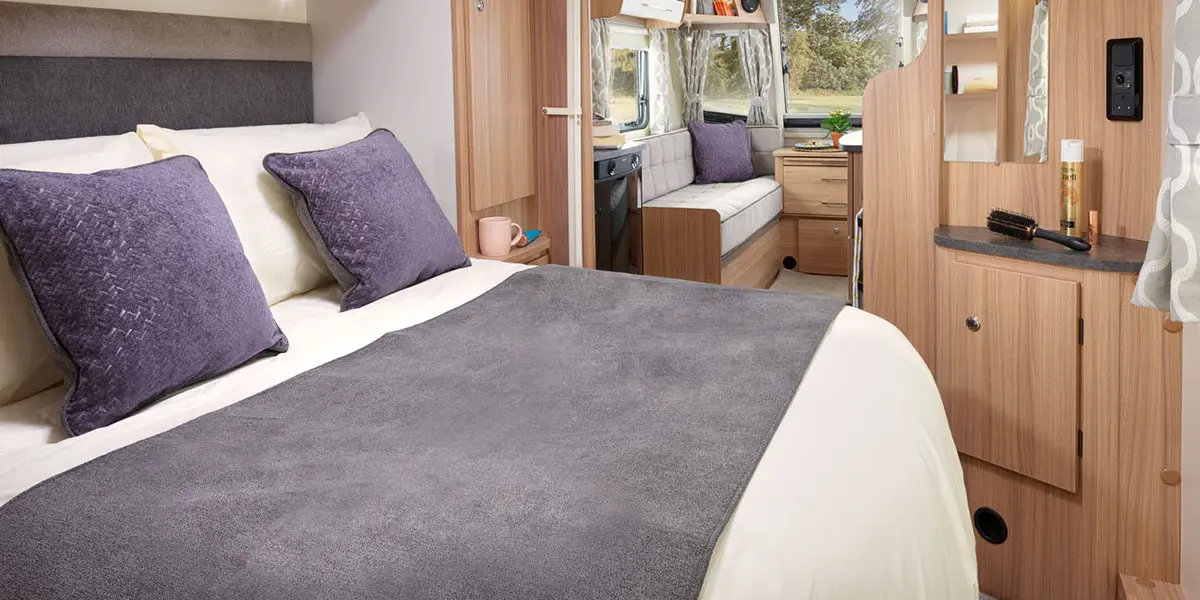

Phoenix+ 644 bedroom through to lounge
i

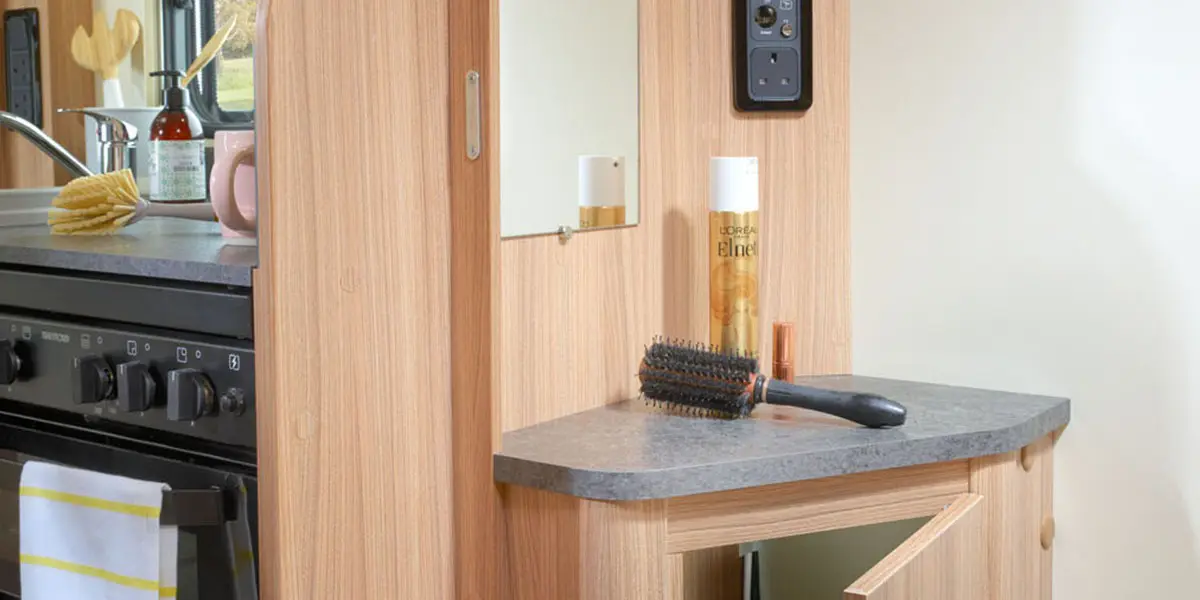

Phoenix+ 644 vanity unit
i

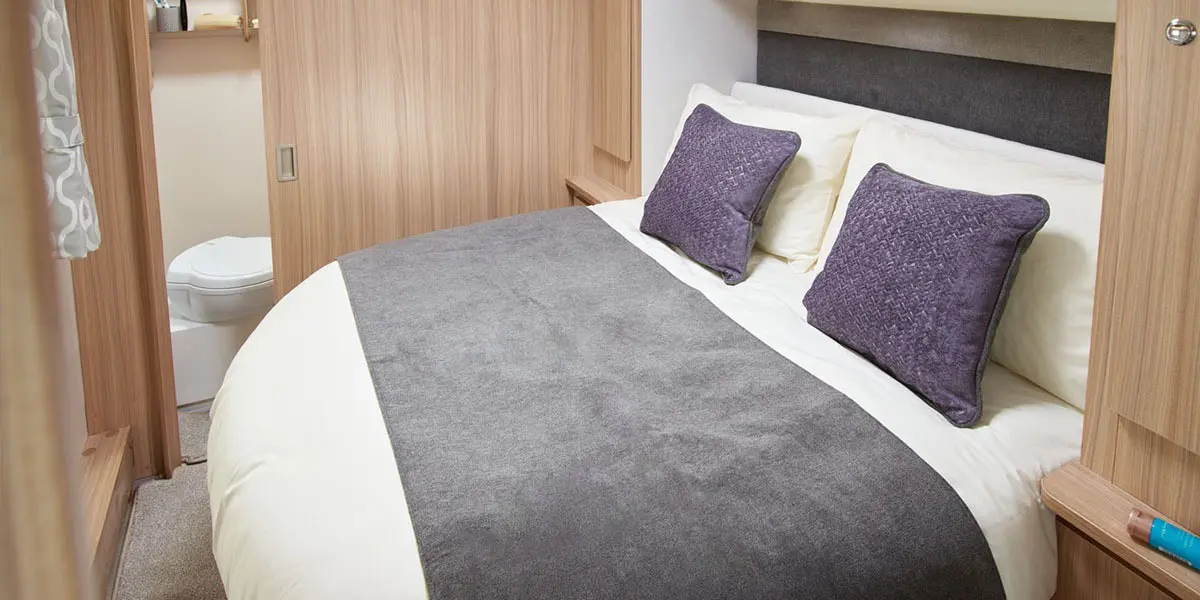

Bespoke caravan bedding set to co-ordinate with caravan soft furnishings (cost option)
Details
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Five part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
- NEW High performance GRP skinned ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
- AL-KO one-piece galvanised steel chassis, braking system and running gear
- Flush-fit front and rear impact resistant bumper with integral grab handles and step up a-frame fairing
- Aero-dynamic & aesthetically enhanced rear bodyshell profile
- NEW Design ‘Silver’ 14” TUV tested alloy wheels
- Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
- Modern look Bailey branded front window with darker screen print
- Vertical front skylight surround with integral task lighting
- Remis pleated flyscreen and blinds to vertical skylight and front windows
- Remis cassette flyscreen and blinds to principal windows
- Midi and mini Heki rooflights located throughout the habitation area
- Hartal GRP skin two part large aperture exterior door with coat hook and Hartal pleated full length flyscreen
- LED awning light with integral water management system
- Easy access exterior storage locker
- Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
- NEW ‘Phoenix+’ graphics scheme
- NEW Bailey ’Light Oak’ furniture finish
- NEW Dual finish Italian design overhead curved locker doors with ‘canvas’ textured contrasting stripe
- NEW Ambient lighting in front corners
- Premium quality, domestic style fixtures and fittings in polished chrome finish
- ‘Nordic Stone’ finish freestanding table with dedicated storage
- 2-drawer front chest with slide out occasional table and soft close drawers
- NEW Low level storage cupboard beneath front chest
- Slatted front bed make-up system on easy-glide track
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled backrest and seat ventilation boards for enhanced heating efficiency
- Conventional cushion construction with fully sprung knee rolled base cushions and square back rests featuring premium quality fabrics
- NEW ‘Chesham’ soft furnishings with co-ordinating curtains and two scatter cushions
- Integrated curtain pelmet
- NEW Silver finish interior grab handle for ease of access in and out of the caravan
- NEW ‘Hazelnut’ loose fit carpet including washroom carpet
- Textured finish durable floor vinyl
- Entrance door mat
- Status 570 telescopic directional digital television aerial
- Up to two TV stations with 230v, 12v and one aerial socket
- NEW Branded DAB Radio with USB connection point and Bluetooth capability
- Branded dual cone stereo speakers for superior sound quality
- NEW pre-wired for WiFi (Retailer fit cost option 2022 season models only)
- Beech slat bed bases with sprung hinged tops for extra comfort and ease of access
- Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
- Superior foam fixed bed mattress construction (model specific)
- Padded headboards in fixed beds (model specific)
- ‘Nordic Stone’ kitchen worktop laminate
- Drop down hob cover worktop in matching ‘Nordic Stone’ finish
- NEW Wall mounted kitchen worktop upstand in ‘Nordic stone’ finish
- NEW Stainless steel round kitchen sink with concealed fixings, mixer tap and drainer
- NEW Kitchen plate rack and cutlery tray
- Dometic 98 litre refrigerator & 12 litre freezer with electronic ignition
- Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
- Thetford hob with 4 gas burners
- NEW 700 watt Dometic microwave oven with non-moving ceramic hot plate
- Solid domestic style washroom door with domestic metal handle
- ‘Nordic Stone’ washroom worktop laminate
- Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
- White gloss shower cubicle with bi-fold partition door and integral lighting
- Bathroom storage cupboard
- Full width washroom mirror (model specific)
- Washroom hand basin and mixer tab
- Thetford C-260 cassette toilet with integrated header tank (model specific)
- Built in Thetford C-260 cassette toilet with remote header tank (model specific)
- 230v power inlet for mains hook-up
- 12v internal lighting system including LED down-lighters and directional spotlights
- 230v power supply with up to five interior sockets
- Two USB sockets in directional spotlights
- Centrally located under floor leisure battery storage locker
- Domestic style consumer unit
- Switch mode battery charger with 20 amp output
- RCD/MCB protection for mains electric system
- Pre-wiring for motor mover (retailer fit)
- 25 metre mains connecting lead
- Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources
- Truma user friendly digital control panel with adjustable fan and water boost functions
- Propane/Butane 30mb gas regulator in gas locker compartment
- Whale High Flow Submersible Pump
- Outboard rigid pipe waste plumbing system
- AL-KO AKS 3004 stabiliser
- WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
- Interior floor mounted spare wheel and tyre (steel wheel)
- High security one key operation throughout
- CRiS identity number anti tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm
- Carbon Monoxide Alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- Supplied with a six-year transferable bodyshell integrity warranty and a three-year transferable manufacturers warranty*
- Four-year transferable extension to bodyshell integrity warranty (making ten years in total) and/or three-year transferable extension to manufacturer’s warranty (making six years in total) available as cost options*
- *Terms and conditions apply
- AL-KO ATC trailer control system (factory fit)
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
Year last produced
2023
Range
Phoenix
Model
Plus
Series
644
Berths
4
Internal Length
5.841m / 19′2″
Shipping Length
7.369m / 24′2″
Overall Width
2.212m / 7′3″
Overall Height
2.624m / 8′7″
Internal Headroom
1.960m / 6′5″
Awning Size
1035cm
Tyre Sizes
185/R14C
MTPLM
1395kg
MRO
1240kg
Total User Payload
155kg
Bed Sizes:
Front Double
1.88m x 1.40m / 6'2'' x 4'7'' Measured from the widest point
Front N/S Single
1.81m x 0.64m / 5'11'' x 2'1'' Measured from the widest point
Front O/S Single
1.81m x 0.64m / 5'11'' x 2'1'' Measured from the widest point
Rear Fixed Double
1.89m x 1.39m/6'2" x 4'7" Measured from the widest point
