Pegasus 624
Berths
4
Axle
Twin
Shipping Length
7.865m / 25′10″
Internal Length
6.292m / 20′8″
Overall Width
2.28m / 7′6″
MTPLM
1661kg
MRO
1481kg
more info
Payload
180kg
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- Two part large aperture Hartel door with moulded interior liner, window and waste bin
- LED awning light
- Twin front wet locker storage compartments
- Gas strut assisted lift up front bed boxes for ease of access to floor level storage
- Dual purpose slide out units to front bed boxes to act as footrests by day and bed bases by night
- Large front window shelf
- Optional chest of drawer unit with slide-out occasional table
- Flexible modular lounge allowing positioning of optional chest of drawer unit in up to three locations (model specific)
- ‘Bailey Twist’ deep pile loose fit drop-in carpets
- Supplementary arm rests
- Wheeled fresh water container with dedicated storage (capacity 23 litres)
- Spinflo recessed 4-burner hob unit and combined grill & domestic style glass fronted oven with electronic ignition and flame failure device
- Large capacity Spinflo recessed sink with removable draining board and ceramic ball tap mixer
i
Pegasus Series 1 Front lounge
i
Slide out footrest
i
Freestanding home entertainment system
i

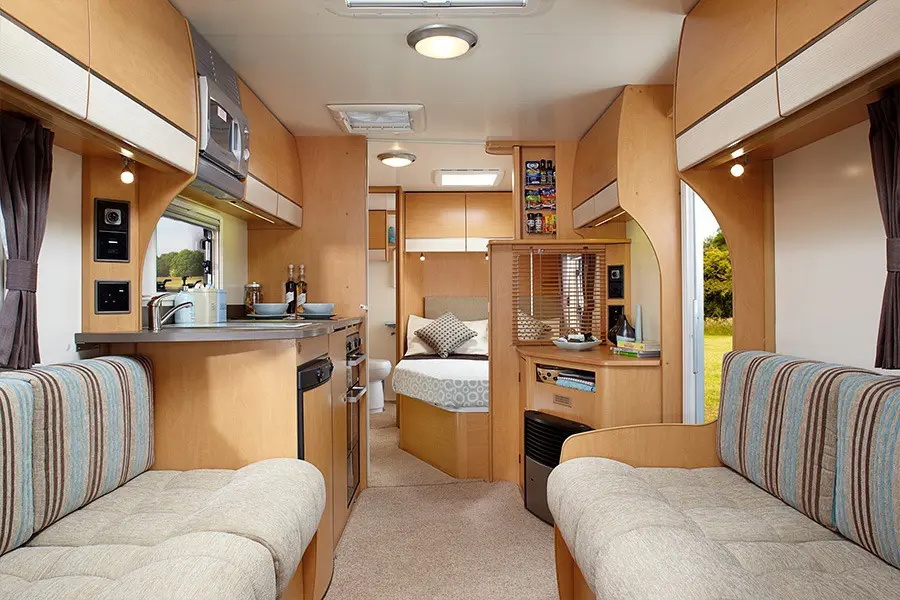

Pegasus Series 1 624 front to rear
i

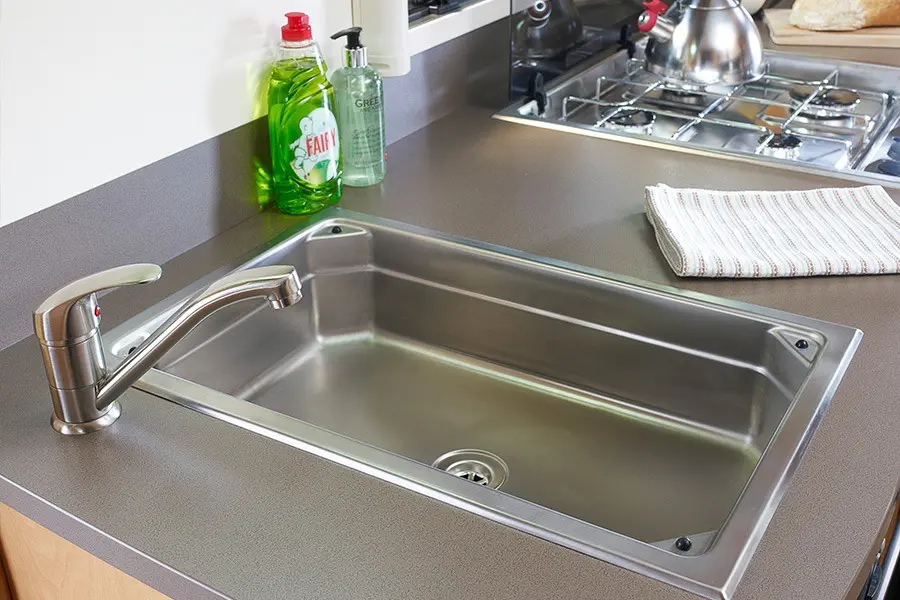

Large capacity Spinflo recessed sink
i
Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid conveniently located
Details
- Fully insulated shell to Grade III classification of EN1645-I
- Structural interlocking aluminium extrusion external framework with no external fixing points and an integral water management system
- Five part fully bonded exterior panel assembly system featuring: Panel thicknesses of: Sides 37mm, Ceiling 37mm & Floor 44mm
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, high density polystyrene insulation and a GRP inner wall lining
- Upper body panels incorporating low absorbency buffer zones surrounding window and door apertures
- Upper body panels cloaked in a single sheet Impact resistant 3000 Series aluminium skin
- Chip resistant paint protection film applied to caravan lower front
- Colour coded components for improved aesthetics
- AL-KO galvanised steel chassis, braking system and running gear
- AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)
- AL-KO caravan jack
- AL-KO ATC Trailer Control System
- AL-KO AKS 3004 Stabiliser
- AL-KO shock absorbers
- 13 pin DIN standard caravan connecting cable
- 14” Alloy wheels with low profile tyres
- Heavy duty rear corner steadies
- Two part large aperture Hartel door with moulded interior liner, window, blind and waste bin
- LED awning light
- Flush fit integral Polyvision double glazed windows with integral water management system to front
- Flush fit integral Polyvision double glazed windows to side and rear
- Flush fit integral exterior service doors
- Twin front wet locker storage compartments
- Weatherproof LED lit front and rear grab handles for improved night time visibility
- Central front gas locker compartment which will accommodate all bottle types and sizes
- Internal headroom of 1.96m (6’5”) throughout the length of the caravan
- Body width of 2.28m (7’6”)
- Interiors tested and approved by FIRA under the Product Certification Scheme for Leisure Accommodation Vehicle Interiors (Touring Caravan Class)
- Gas strut assisted lift up front bed boxes for ease of access to floor level storage area
- Dual purpose slide out units to front bed boxes to act as footrests by day and bed bases by night
- Large front window shelf (35cm wide)
- Optional chest of drawer unit with slide out occasional table
- Flexible modular lounge allowing positioning of optional chest of drawer unit in up to three locations (model specific)
- Seat and backrest ventilation boards
- Folding leaf free standing table
- Occasional table (model specific)
- Floating fascia overhead locker system with split level storage, domestic style metal hinges and concealed catches
- Flush profile dual finish Italian design overhead locker doors
- Structural locker dividers with greater load bearing capacity
- Streamlined caravan furniture units featuring flush fit doors
- Soft shut drawer units
- Solid domestic style washroom door with metal handle
- Solid partition doors to end bedrooms (model specific)
- Pull out kitchen storage unit
- Premium quality fixtures and fittings in matt nickel
- Fully sprung upholstery (except split cushions used in bunk make up) featuring premium quality fabrics, high density filling and superior cushion construction
- Standard Gemini soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- Optional Scorpio soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- Optional Capricorn soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- ‘Bailey Twist’ deep pile loose fit drop in carpets
- Supplementary arms rests
- Fabric mounted magazine rack
- 230v power supply with three interior and one exterior socket
- TV station with 230v/12v/aerial sockets
- Status 530 telescopic directional television aerial
- 12v internal lighting
- Centrally located control panel
- Domestic style consumer unit with dedicated access door
- Switch mode battery charger with 20 amps output
- RCD/MCB protection for mains electric system
- 25 metre mains connecting lead
- Truma 3002 3kw gas heater with electric spark ignition and supplementary 230v Ultraheat system with silent running night setting
- Truma Ultratherm and blown air distribution system
- Truma Ultrastore water heater (gas/electric operation)
- Propane/Butane 30mb gas regulator mounted in gas locker compartment
- Exterior gas BBQ point
- Whale Aqua smart II on-board water pump
- Wheeled fresh water container with dedicated storage (capacity 23 litres)
- Inboard pressurised hot and cold fresh water system with reinforced hosing
- Inboard rigid pipe waste plumbing system
- Inboard shower unit with ceramic ball mixer tap
- Fully lined shower cubicle (model specific)
- Swivel Thetford C-250 cassette toilet with integrated header tank
- Dometic 115 litre refrigerator with electronic ignition and detachable full width freezer compartment (capacity increases to 122 litres when freezer compartment is removed)
- Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
- Spinflo combined grill and domestic style glass fronted oven with electronic ignition and flame failure device
- Large capacity Spinflo recessed sink with removable draining board and ceramic ball mixer tap
- Microwave oven
- Chopping board
- Washing up bowl
- Horrex pleated flyscreen and sunblinds to all side and rear windows
- Horrex retractable flyscreen and sunblinds to all front windows
- Horrex pleated full length flyscreen to exterior door
- Omnivent dual action rooflight mounted extractor fan
- Full size Heki II tilting sunroof
- Mini Heki roof light located over rear bedroom (model specific)
- Branded combination home entertainment system featuring a 16” flat screen television and DVD player
- Branded Radio/CD/MP3 player with iPod/MP3 player connection point
- Branded dual cone stereo speakers for superior sound quality
- TRACKER Monitor Thatcham TQA Approved Stolen Caravan Recovery System
- TRACKER alarm
- AL-KO Secure portable wheel lock
- CRiS identity number etched to windows and caravan chassis
- Concealed security data chip within caravan construction
Year last produced
2010
Range
Pegasus
Model
624
Series
Series 1
Berths
4
Internal Length
6.292m / 20′8″
Shipping Length
7.865m / 25′10″
Overall Width
2.28m / 7′6″
Overall Height
2.63m / 8′8″
Internal Headroom
1.96m / 6′5″
Awning Size
1113cm
Tyre Sizes
185/65 R14LI93N
MTPLM
1661kg
MRO
1481kg
Total User Payload
180kg
Bed Sizes:
Front Saloon
6’10” x 5’11” Measured from the widest point
Front O/S Single
5’11” x 2’3” Measured from the widest point
Front N/S Single
5’11” x 2’3” Measured from the widest point
Rear Double
6’4” x 4’6” Measured from the widest point
