Discovery D4-4
Berths
4
Axle
Single
Shipping Length
7.149m / 23′5″
Internal Length
5.31m / 17′5″
Overall Width
2.228m / 7′4″
MTPLM
1248kg
MRO
1102kg
more info
Payload
146kg
upgrade info
RRP Price
£21,499
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Key Features
- Compact single axle, 7’3” wide model for up to 4 people with parallel seat front lounge and rear corner double bed
- Lightweight MPTLM of 1248kg, towable by a Nissan Qashqai or equivalent.
- Aerodynamic GRP Skinned Alu-Tech bodyshell for strength, durability, and stability
- AL-KO chassis with stabiliser hitch and TUV alloy wheels for safety
- Front lounge converts a double bed, available in one fabric option
- Well-equipped kitchen with a Dometic 103L under-counter fridge
- Longitudinal double corner bed with exterior access under bed storage
- Full-width end washroom with separate shower and storage cabinet
i
Discovery D4-4 front lounge to bedroom and washroom
i

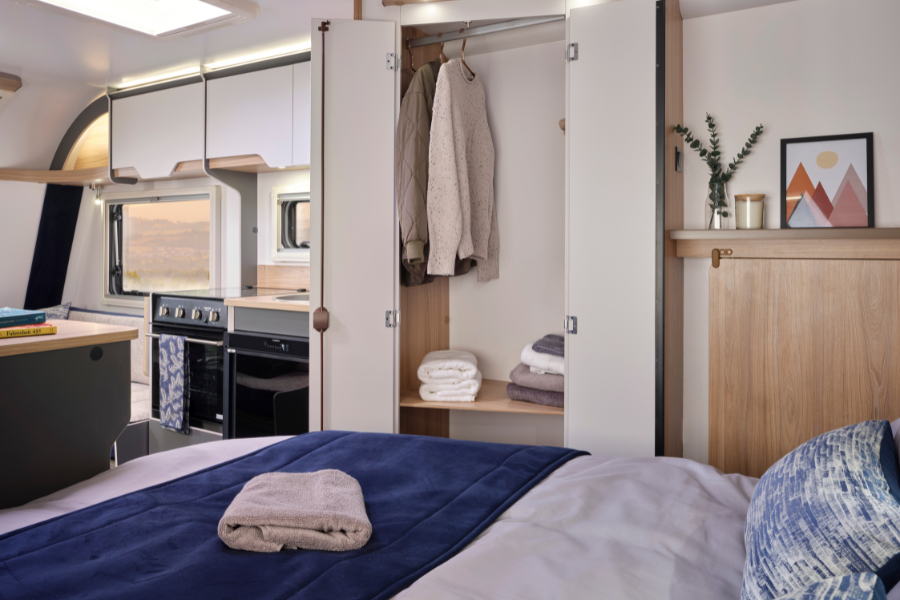

Discovery D4-4 bedroom with superior foam fixed bed mattress with ample wardrobe and shoe storage
i

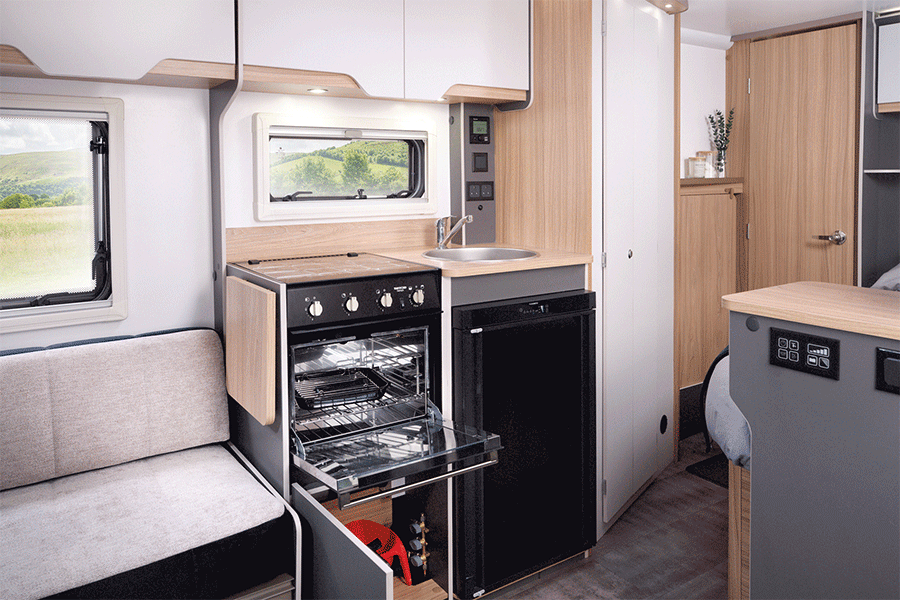

‘Light Oak’ kitchen worktop with drop down extension. Equipped with a Dometic 101 litre refrigerator, 12 litre freezer and Thetford Triplex combination oven and grill
i
‘Light Oak’ washroom laminate worktop with gloss white fully lined shower cubicle with bi-fold partition shower door (model specific)
i

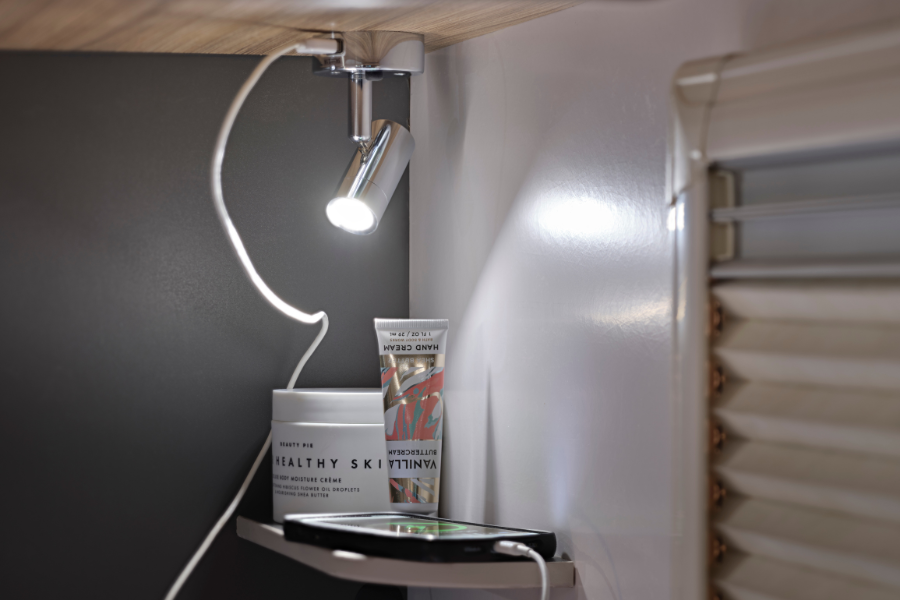

USB sockets in directional spotlights
i

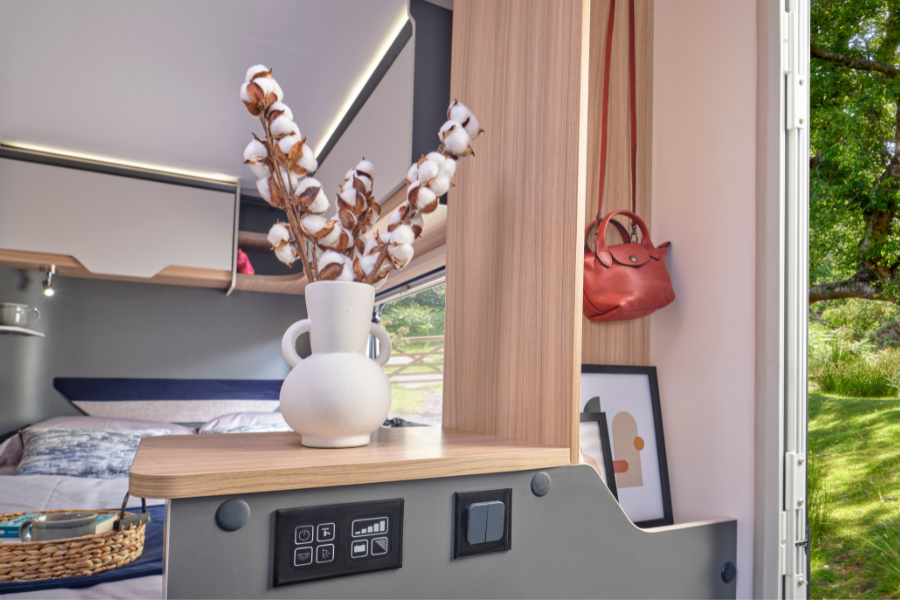

New centrally located electrical control panel
Details
- Contrasting blue and black wrap around exterior graphics scheme
- ‘Silver’ 14” TUV tested alloy wheels with premium branded tyres
- Bailey ‘Light Oak’, ‘Satin Cashmere’ and ‘Anthracite’ furniture finishes
- ‘Satin Cashmere’ overhead locker doors with Bailey ‘Light Oak’ detailing
- Bailey ‘Light Oak’ worktop laminate finishes
- Bailey ‘Light Oak’ kitchen splashback
- Standard ‘Apollo’ soft furnishings with two scatter cushions
- ‘Dark Oak’ finish durable floor vinyl
- Aerodynamic GRP skinned ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell with wrap around rear profile
- Contrasting blue and black wrap around exterior graphics scheme
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Four part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a polystyrene insulation core and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- Floor panel built using a plywood skin with a vinyl covered underside, timber frame and a high-density Styrofoam insulation core (2025 season models onward)
- EN-1645-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing
- AL-KO one-piece galvanised steel chassis, braking system, running gear and corner steadies
- ‘Silver’ 14” TUV tested alloy wheels with premium branded tyres
- Two-piece front impact resistant bumper with integral grab handles
- Extended a-frame suitable for optional bike rack (Retailer fit cost option)
- Single piece rear impact resistant bumper with integral grab handles and light cluster
- Hartal two-part habitation door
- LED awning light above external door
- Polyplastic double glazed opening vertical front infinity window
- Polyplastic double glazed windows throughout the habitation area
- Remis pleated blinds and flyscreens throughout the habitation area
- Remis splash proof roller blind to kitchen window
- Midi and mini Heki rooflights located throughout the habitation area
- Exterior access storage locker
- Exterior access centrally mounted gas locker for enhanced towing stability and reduced nose weight
- Bailey ‘Light Oak’, ‘Satin Cashmere’ and ‘Anthracite’ furniture finishes
- ‘Satin Cashmere’ overhead locker doors with Bailey ‘Light Oak’ detailing
- Spacious overhead storage lockers with structural dividers for greater load bearing capacity
- Premium quality chrome finish fixture and fittings
- Standard ‘Apollo’ soft furnishings with two scatter cushions
- Conventional sprung cushion construction with fully sprung base cushions and foam filled back rests all featuring premium quality fabrics
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled backrest and seat ventilation boards for enhanced comfort and heating efficiency
- Slatted front bed make-up system on easy-glide track
- Front lounge shelf with dedicated storage pocket and cubby holes
- Freestanding dining table in Bailey ‘Light Oak’ finish with dedicated storage location
- Wall mounted side table in Bailey ‘Light Oak’ finish with dedicated storage location (model specific)
- ‘Dark Oak’ finish durable floor vinyl
- Entrance door mat
- Status 570 telescopic directional digital television aerial
- One TV station with 230v, 12v and aerial sockets
- Pre-wired for optional roof mounted Avtex mobile wi-fi system (Retailer fit cost option)
- Bailey ‘Light Oak’ kitchen worktop laminate finish

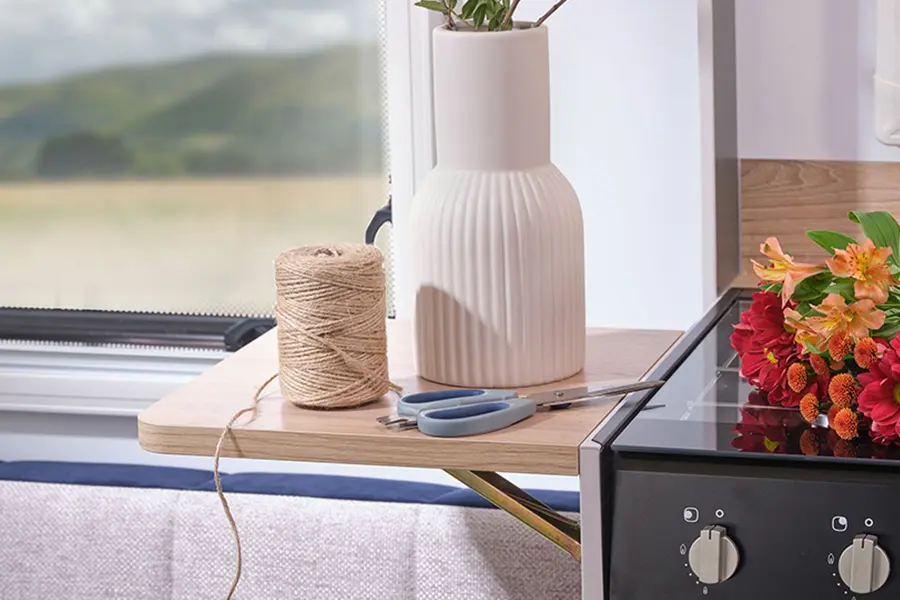

- Drop down kitchen worktop extension in Bailey ‘Light Oak finish (model specific)
- Stainless steel round kitchen sink with concealed fixings and mixer tap
- Bailey ‘Light Oak’ kitchen splashback
- Bailey ‘Satin Cashmere’ and ‘Anthracite’ kitchen units
- Dometic 103 litre refrigerator with 12 litre freezer compartment
- Thetford triplex combination oven, grill with electronic ignition and flame failure device
- Thetford hob with three gas burners
- Bailey ‘Light Oak’, ‘Satin Cashmere’ and ‘Anthracite’ bedroom furniture
- Aluminium fixed bed frames with sprung beech slat bases and hinged tops for enhanced comfort and ease of access to under bed storage spaces (model specific)
- Superior foam fixed island bed mattress construction (model specific)
- Soft touch fixed bed headboards (model specific)
- Bailey ‘Light Oak, ‘Satin Cashmere’ and ‘Anthracite’ bathroom furniture with Bailey ‘Light Oak’ work surfaces and integral storage
- Wall mounted vanity cupboard and wall mounted mirror
- Onboard shower with fitted shower tray, Ecocamel shower head, riser bar and combination mixer tap
- Gloss white shower cubicle with bi-fold partition door
- Belfast style washroom hand basin with mixer tap
- Two wall mounted towel hooks
- Mini Heki rooflight with night blind
- Thetford 12v electric flush toilet with removable cassette on wheels
- Electrical control unit with simple controls for heating and hot water systems
- 230v power inlet for mains hook up with 25 metre mains connecting lead
- 230v power supply with up to four interior sockets and two USB points
- Switch mode battery charger with 20amp output
- 12v internal LED task and ambient lighting system including ceiling mounted down-lighters and directional spotlights
- Pre-wired for optional motor mover fitment (Retailer fit cost option)
- Truma Combi 2 heating and hot water system
- Dual fuel 2.0kw gas and up to 1.8kw electric power sources
- Digital control panel with adjustable fan and water boost function
- Provision for 2 x 6kg gas bottles with fitted butane/propane 30mb gas regulator in dedicated locker compartment
- Pressurised hot and cold freshwater system with Whale high flow self-priming submersible pump
- Inboard rigid pipe waste plumbing system
- AL-KO AKS 3004 stabiliser
- WSL individually laser balanced wheels fitted with premium tyres and anti-tamper WSL safety bolts
- Interior floor mounted spare wheel (steel wheel) and cover
- CRiS identity number anti-tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm and carbon monoxide alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- 6-year body integrity warranty provided by Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 3-year manufacturers’ warranty provided by Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 4-year insurance backed extension to body integrity warranty (making 10 years in total) also available as a cost option.
- Terms and conditions apply. Please contact your supplying Retailer for more information
- 3-year insurance backed extension to manufacturers’ warranty (making 6 years in total) also available as a cost option.
- Terms and conditions apply. Please contact your supplying Retailer for more information
- AL-KO ATC trailer control system (Factory fit)
- Truma 100-watt lightweight flexible solar panel (Retailer fit)
- Avtex mobile wi-fi system (Retailer fit)
- ‘Willow Grey’ split section loose fit drop in carpets
Range
Discovery
Model
D4-4
Berths
4
Internal Length
5.31m / 17′5″
Shipping Length
7.149m / 23′5″
Overall Width
2.228m / 7′4″
Overall Height
2.605m / 8′7″
Internal Headroom
1.960m / 6′5″
Tyre Sizes
185 R14C
MTPLM
1248kg
MRO
1102kg
Total User Payload
146kg
Bed Sizes:
Front Double
1.88m x 1.53m (6' 2" x 5' 0") Measured from the widest point
Front N/S Single
1.53m x 0.62m (5' 0" x 2' 0") Measured from the widest point
Front O/S Single
1.53m x 0.62m (5' 0" x 2' 0") Measured from the widest point
Rear Fixed Double
1.90m x 1.32m (6' 3" x 4' 4") Measured from the widest point
RECOMMENDED RETAIL PRICE £21,499
RRP as at 15th August 2024 (prices include VAT @20%). Please see below for important price information
Price Guarantee: These prices are guaranteed subject to you ordering your caravan from the earliest production availability and that you take delivery within 14 days of dispatch from the factory.
Retailer Delivery Charge. Your Bailey Retailer will make a charge of up to £645 to cover the cost of various additional services carried out prior to you taking possession of your new Bailey tourer. The main element of this charge will be the cost of transporting your tourer from the Bailey factory to your vending Retailer’s premises. Your Bailey Retailer can confirm the details of the additional services available prior to making your choice.
| Optional Extras | RRP | KG |
|---|---|---|
| AL-KO ATC Trailer Control System (Factory Fit) | £550 | 3kg |
| Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific) | From £222 | Up to 7.3kg |
| 4-year extension to standard 6-year bodyshell integrity warranty (making ten years in total)* | From £599 | Nil |
| 3-year extension to standard 3-year manufacturers warranty (making six years in total)* | From £576 | Nil |
Optional Extras. Options pricing is only applicable on new leisure vehicle orders. Ask your supplying Retailer for more information.
*Terms and conditions apply to warranty extension schemes. Please contact your supplying Bailey Retailer for more details.
