Discovery D4-2
Berths
2
Axle
Single
Shipping Length
5.615m / 18′5″
Internal Length
3.866m / 12′8″
Overall Width
2.228m / 7′4″
MTPLM
995kg
MRO
884kg
more info
Payload
111kg
upgrade info
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- Opening vertical front skylight
- Wrap-around graphics scheme
- Graphite finish 14” TUV tested alloy wheels
- Extended a-frame suitable for additional optional storage solutions
- Truma user friendly digital control panel with adjustable fan and water boost functions
- Remis pleated flyscreen and blinds
- Textured finish durable floor vinyl
- Front corner wall-mounted storage pouches
- Ambient lighting in front corner
- 'Java' soft furnishings with two square scatter cushions
- Sprung base cushions
- 'Lana Grey' matt overhead locker doors with contrast edging and over-locker LED lighting
- Fold down occasional table
- Overhead locker with split level storage
- Thetford Triplex combination oven and grill with 3 gas burner hob
- Dometic 103 litre refrigerator and 12 litre freezer
- Stainless steel square kitchen sink with mixer tap
- Drop down kitchen worktop extension
- ‘Granite Stone’ fully lined shower wet room with partition curtain
- Bathroom storage cupboard
- NEW pre-wired for WiFi (Retailer fit cost option 2022 season models only)
i

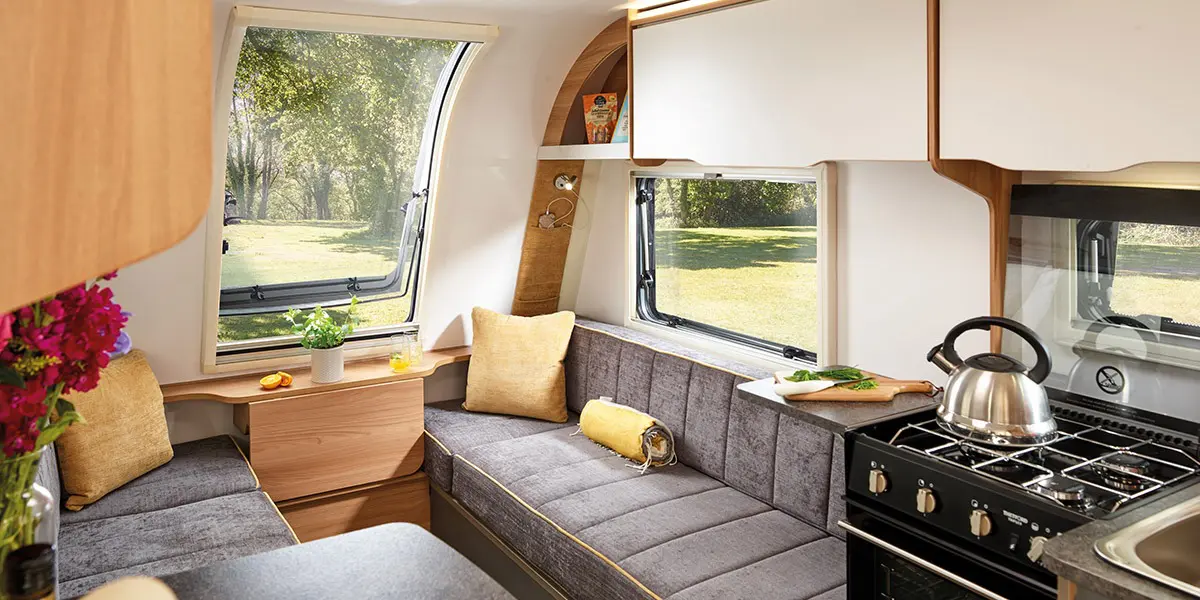

D4-2 Lounge with 'Lana Grey' matt overhead locker doors and 'Java' soft furnishings
i

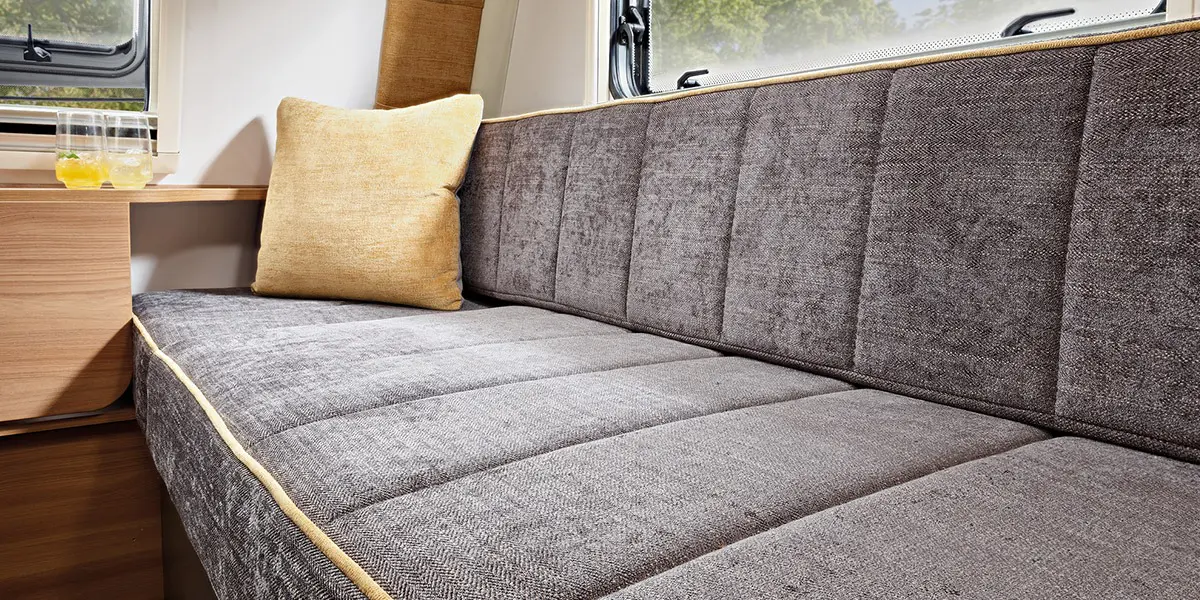

Spring base cushions shown in D4-2 (all models)
i
Ambient lighting in front corner (all models)
i

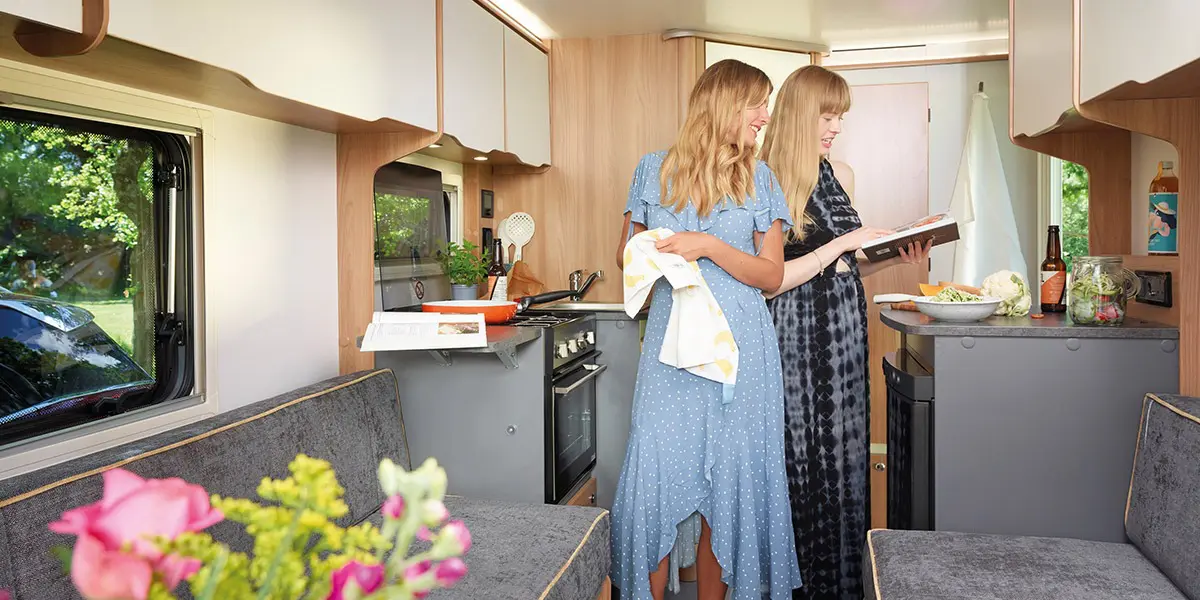

Discovery D4-2 Kitchen with Thetford Triplex combination oven
i

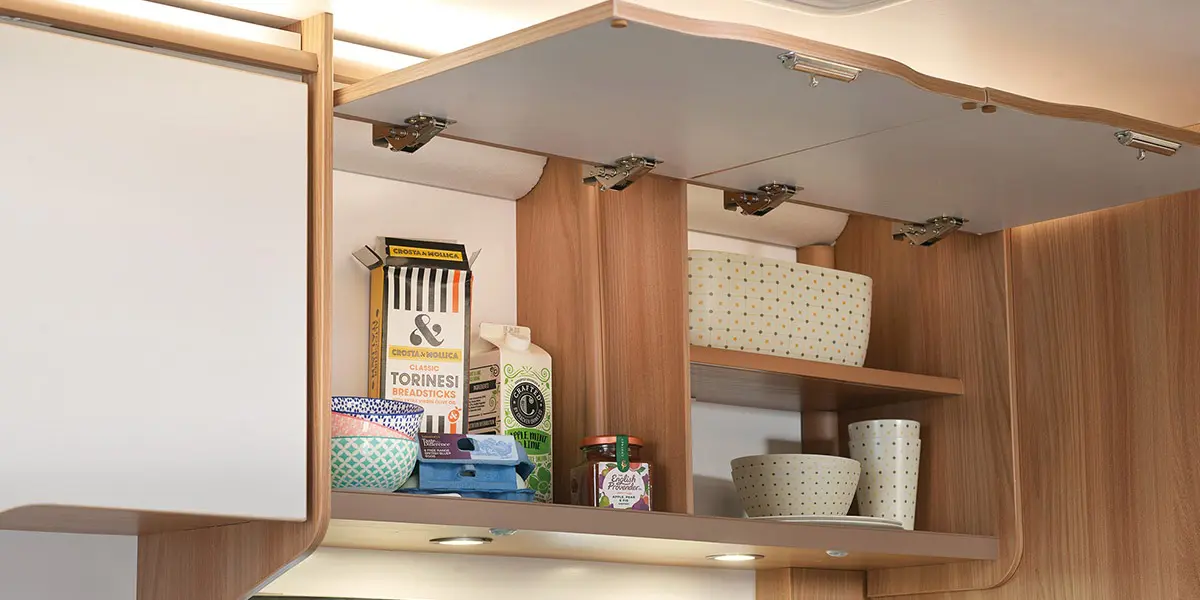

Discovery D4-2 Overhead locker with split level storage
i

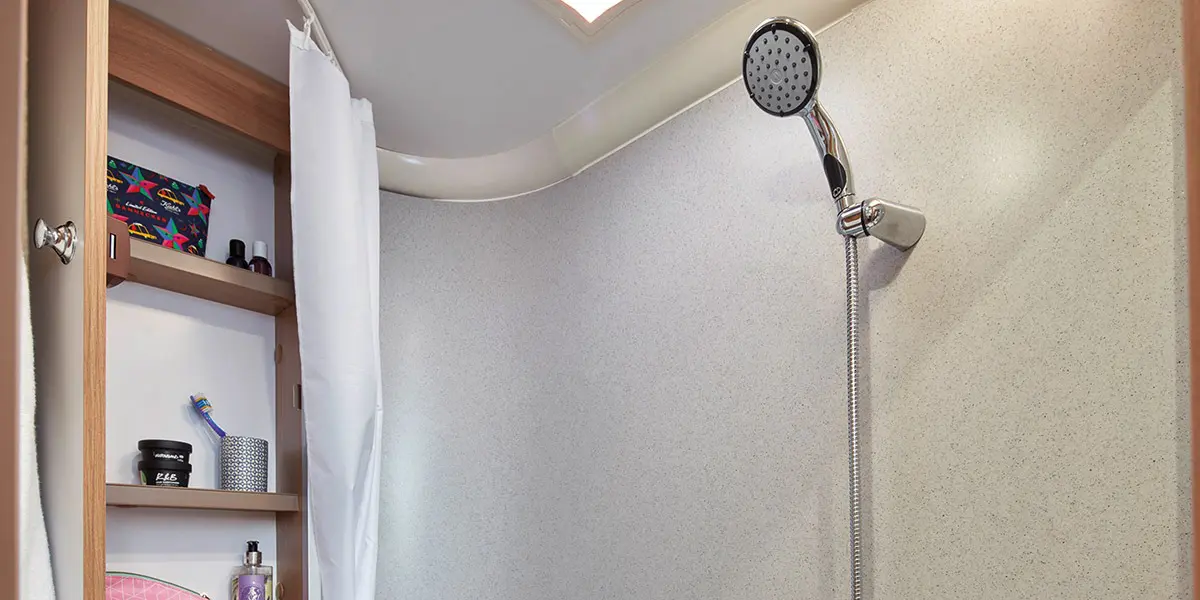

Discovery D4-2 Granite Stone fully lined shower wet room with bathroom storage cupboard
Details
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Four part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
- Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
- Four part fully bonded exterior panel assembly system
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
- High performance GRP skinned duo-tone ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
- AL-KO one-piece galvanised steel chassis, braking system and running gear
- Flush fit front and rear impact resistant bumpers with grab handles
- Aero-dynamic & aesthetically enhanced wrap-around rear bodyshell profile
- Extended a-frame suitable for additional optional storage solutions
- ‘Graphite’ finish 14” TUV tested alloy wheels
- Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
- Modern look Bailey branded front window with darker screen print
- Remis 2-part pleated flyscreen and blind to vertical skylight and Remis pleated flyscreen and blinds to principal windows
- Midi Heki roof light in main habitation area
- Hartal GRP skin two part large aperture exterior door with coat hook and Hartal pleated full length flyscreen
- LED awning light with integral water management system
- Easy access exterior storage lockers
- Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
- Wrap-around graphics scheme
- Bailey ‘Mendip Ash’, ‘Lana Grey’ and ‘Anthracite’ furniture finishes
- ‘Lana Grey’ matt overhead locker doors with contrast edging and over-locker LED lighting
- Premium quality, domestic style fixtures and fittings in polished chrome finish
- ‘Nordic Stone’ finish freestanding table with dedicated storage
- ‘Nordic Stone’ finish wall mounted rear lounge table (model specific)
- Fold down occasional table
- Slatted front bed make-up system on easy glide track
- Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
- Angled seat ventilation boards for enhanced heating efficiency
- Upholstery featuring premium quality fabrics, sprung base cushions and foam back rests
- ‘Java’ soft furnishings with two square scatter cushions
- Front corner wall-mounted storage pouches
- Textured finish durable floor vinyl
- Entrance door mat
- Status 570 telescopic directional digital television aerial
- One TV station with 230v, 12v and one aerial socket
- NEW pre-wired for WiFi (Retailer fit cost option)
- Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
- Beech slat bed bases with sprung hinged tops for extra comfort and ease of access (model specific)
- Superior foam fixed bed mattress construction
- ‘Nordic Stone’ kitchen worktop laminate
- Drop down kitchen worktop extension
- Stainless steel square kitchen sink with mixer tap
- Dometic 103 litre refrigerator & 12 litre freezer with electronic ignition
- Thetford Triplex combination oven and grill with 3 gas burner hob
- Solid domestic style washroom door with domestic metal handle
- Roof light located in washroom
- ‘Nordic Stone’ washroom worktop laminate (model specific)
- Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
- ‘Granite Stone’ fully lined shower cubicle with bi-fold partition shower door (model specific)
- ‘Granite Stone’ fully lined shower wet room with partition curtain (model specific)
- Bathroom storage cupboard
- Washroom hand basin and mixer tap with integrated storage (model specific)
- Thetford C-260 cassette toilet with integrated header tank
- 230v power inlet for mains hook-up
- 12v internal lighting system including LED down-lighters and directional spotlights
- 230v power supply with up to four interior sockets
- Two USB sockets in directional spotlights
- Centrally located under floor leisure battery storage locker
- Domestic style consumer unit
- Switch mode battery charger with 20 amp output
- RCD/MCB protection for mains electric system
- Pre-wiring for motor mover (retailer fit)
- 25 metre mains connecting lead
- Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources
- Truma user friendly digital control panel with adjustable fan and water boost functions
- Propane/Butane 30mb gas regulator in gas locker compartment
- Truma Ultraflow submersible pump
- Outboard rigid pipe waste plumbing system
- AL-KO AKS 3004 stabiliser
- WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
- Interior floor mounted spare wheel and tyre (steel wheel)
- High security one key operation throughout
- CRiS identity number anti tamper labels attached to windows and inside gas locker
- Concealed security data chip within caravan construction
- Smoke alarm
- Carbon Monoxide Alarm
- European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
- Supplied with a 6-year transferable bodyshell integrity warranty and a 3-year transferable manufacturers warranty*
- 4-year transferable extension to bodyshell integrity warranty (making 10 years in total) and/or 3-year transferable extension to manufacturer’s warranty (making 6 years in total) available as cost options*
- * Terms and conditions apply. Please visit baileyofbristol.co.uk/warranties-servicing for more information
- Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
- Exclusive PRIMA storage box fitted to front a-frame
- Thule bike rack fitted to front a-frame
- ‘Willow Grey’ Split section loose fit drop in carpet
Year last produced
2023
Range
Discovery
Model
D4-2
Series
Series 1
Berths
2
Internal Length
3.866m / 12′8″
Shipping Length
5.615m / 18′5″
Overall Width
2.228m / 7′4″
Overall Height
2.605m / 8′7″
Internal Headroom
1.960m / 6′5″
Awning Size
1004cm
Tyre Sizes
185/R14C
MTPLM
995kg
MRO
884kg
Total User Payload
111kg
Bed Sizes:
Front Double
1.88m x 1.72m (6' 2" x 5' 8") Measured from the widest point
Front N/S Single
2.00m x 0.64m (6' 7" x 2' 1") Measured from the widest point
Front O/S Single
2.00m x 0.64m (6' 7" x 2' 1") Measured from the widest point
First time buyers
If you’re new to caravanning it can feel like there is a lot to learn and remember. We’ve put together these easy to follow guides to your first trip out in your new caravan to help you get up and running in no time.
Find a Retailer
The best place to find a pre-owned Bailey caravan is at one of our Approved Bailey.
New Model
If you are looking for a similar layout in our current ranges, the Discovery D4-2 is the closest match
