Autograph 79-4T Series 3

2019 - 2024

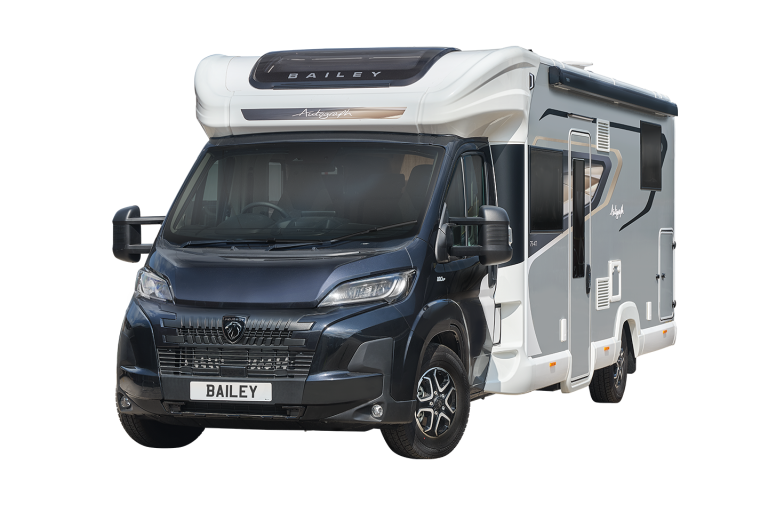

Autograph 79-4T

Berths
4
Designated Travelling Seats
4
Cab
Peugeot Cab (Graphite)
Engine
165bhp / 2179cc
Chassis
AL-KO AMC
Overall Body Length
7.931m / 26′0″
MTPLM
3850kg
MRO
3276kg more info
Payload
574kg

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • Peugeot Sat Nav system
  • NEW Dometic reversing camera
  • NEW diamond cut style ‘Graphite’ 16” alloy wheels
  • Through-boot easy access large exterior storage locker
  • Ergonomically shaped rear travel seats
  • NEW fully adjustable driver and passenger seats with twin upholstered armrests
  • NEW ‘Cadet Grey’ split section loose fit drop in carpets
  • NEW standard ‘Farringdon’ soft furnishings
  • NEW optional ‘Portobello’ soft furnishings
  • NEW dual finish ʻCashmereʼ gloss Italian design overhead curved locker doors
  • NEW high level storage pockets
  • Alde touch screen user-friendly control panel
  • NEW feature control panel with USB socket
  • NEW Dometic 10-series 153 litre electronic fridge freezer with universal handed door mechanism
  • NEW branded Perspex kitchen splashback with chrome detailing
  • Drop down kitchen worktop extension
  • NEW stainless steel round kitchen sink with concealed fixings
  • NEW Thetford K-Series combined oven, grill and hob
  • NEW 12v directional spotlights with integral USB sockets in rear bedroom
  • NEW full wall headboard
  • ‘Honeycore’ foam fixed bed mattress construction with stylish fabric covering
  • Bespoke motorhome bedding sets (cost option)
  • Lined shower cubicle with bi-fold partition door and integral lighting
  • NEW pre-wired for WiFi (Retailer fit cost option 2022 season models only)

Details

  • Peugeot fully compliant Euro 6.2 Boxer Cab supplied with a 3-year/100,000 mile warranty and 36 months Peugeot European assist cover
  • Peugeot 2.2 Blue HDi (High Pressure Direct Injection) 165bhp engine with 6-speed manual gear box
  • ‘Graphite’ cab with colour coded bumpers and door handles
  • Diamond cut style ‘Graphite’ 16” alloy wheels (except 81-6 that has ‘Silver’ alloy wheels) with premium branded tyres with tyre pressure sensor
  • Fully specified cab with cruise control, air conditioning, driver and front passenger airbags, electric cab windows and heated wing mirrors
  • Remote central locking for cab and habitation door
  • Battery isolator
  • Variable power steering
  • Electronic Stability Program (ESP)
  • Anti-lock braking system (ABS)
  • Engine immobiliser
  • Concertina windscreen and side window blinds
  • DAB Radio with Bluetooth connectivity and 2 door speakers
  • Two 12v sockets and USB connection point in storage locker
  • Twin cup holders
  • Peugeot Sat Nav sytem
  • Dometic reversing camera linked to Peugeot head unit
  • High level storage pockets
  • Fully adjustable upholstered driver and passenger Captain’s seats with twin upholstered armrests and integrated headrests
  • Structural interlocking aluminium extrusion external framework with no external fixing points for additional strength and rigidity
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • Strengthened floor panel with GRP underside protection
  • EN-1646-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing
  • High performance GRP skinned ‘Dove Grey’ and ‘Glacier White’ Alu-Tech bodyshell
  • AL-KO low profile AMC Chassis
  • AL-KO AMC Chassis prepared for towbar fitment
  • Aero-dynamic over cab profile
  • Double glazed opening sky view over cab window with blind and internal surround (model specific)
  • Aerodynamically profiled double glazed Polyplastic opening windows throughout
  • Pleated flyscreens and blinds to all principal windows
  • Midi and mini Heki rooflights located throughout the habitation area
  • Rear bumper and light pillars with LED road lights
  • Rear sequential indicators

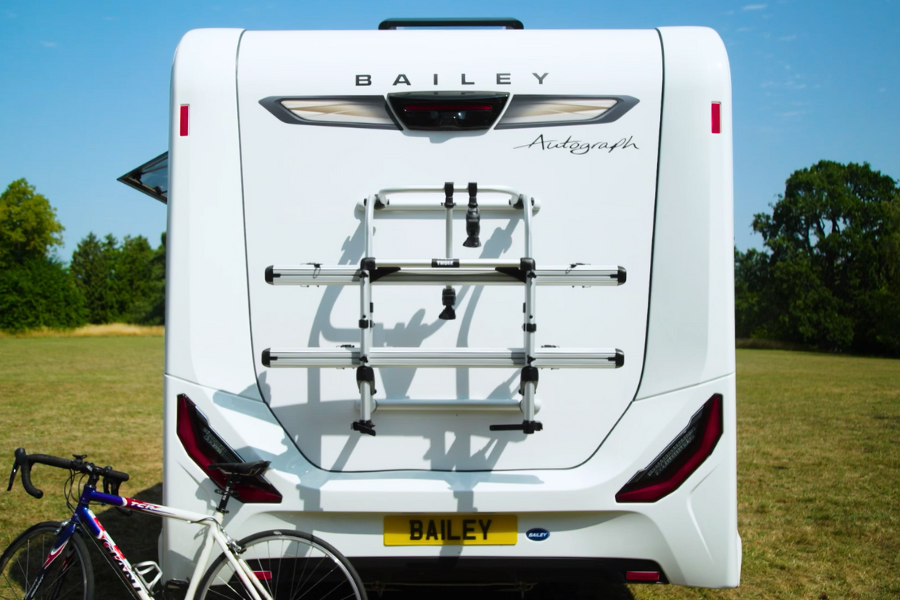

  • Fixing points for rear mounted cycle rack
  • Thule Omnistor wind-out awning
  • Dometic slim line flush fit habitation door with window, blind and bin plus a gas-strut assisted mechanism for smooth operation and Dometic pleated full length door flyscreen
  • Door step with non-slip mat
  • Hartal exterior doors featuring flush fit double seals, heavy duty handles, compression locks and retaining clips.
  • Centrally mounted exterior gas locker compartment
  • Underbed storage area (model specific)
  • Through-boot easy access large exterior storage on all end-lounge and end-bedroom models
  • Co-ordinating graphics scheme
  • Bailey ‘Mendip Ash’ furniture finish
  • Dual finish ‘Cashmere’ gloss Italian design overhead curved locker doors with ‘Grey’ textured contrasting stripe
  • Premium quality fixtures and fittings in chrome finish
  • Structural locker dividers with greater load bearing capacity
  • ‘Slate Grey’ marble finish freestanding table with dedicated storage (model specific)
  • ‘Slate Grey’ marble finish wall mounted table with dedicated storage (model specific)
  • Slide out bed boxes for easy bed make up (model specific)
  • Drop in tables for easy bed make up (model specific)
  • Drop down flaps on front bed box fascias (model specific)
  • Single raised floor for either front or rear lounges
  • Domestic style sofa seating featuring premium quality fabrics and sprung seat bases for enhanced comfort
  • Curved corner back rests with removable head rests (model specific)
  • Upholstered bulkhead in front lounges (model specific)
  • Standard ‘Farringdon’ soft furnishings with fully lined co-ordinating curtains and four large square scatter cushions
  • Optional ‘Portobello’ soft furnishings with fully lined co-ordinating curtains and four large square scatter cushions
  • Pouches with integrated speakers in rear lounges (model specific)
  • Illuminated entrance grab handle for ease of access in and out of the motorhome
  • ‘Cadet Grey’ split section loose fit drop in carpets
  • Textured finish durable floor vinyl
  • Status 550 telescopic directional digital television aerial
  • Vision Plus satellite connection provision
  • Pre-wired for satellite (retailer fit)
  • TV stations with 230v, 12v and aerial sockets in front and rear (model specific)

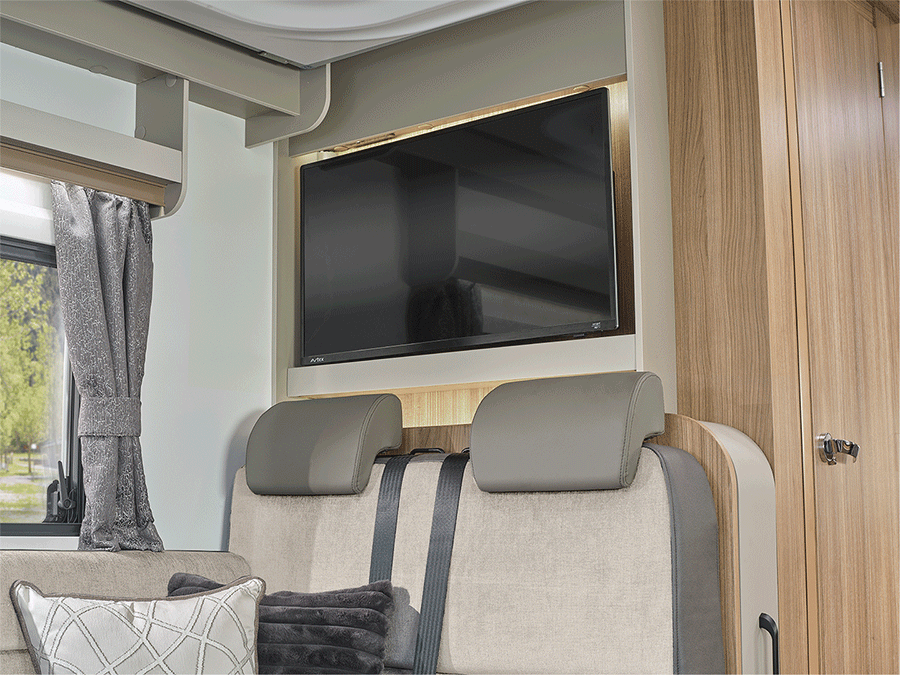

  • Swivel and tilt TV bracket (model specific)
  • Two front and two rear speakers (model specific)
  • Pre-wired for WiFi (Retailer fit cost option 2022 season models only)

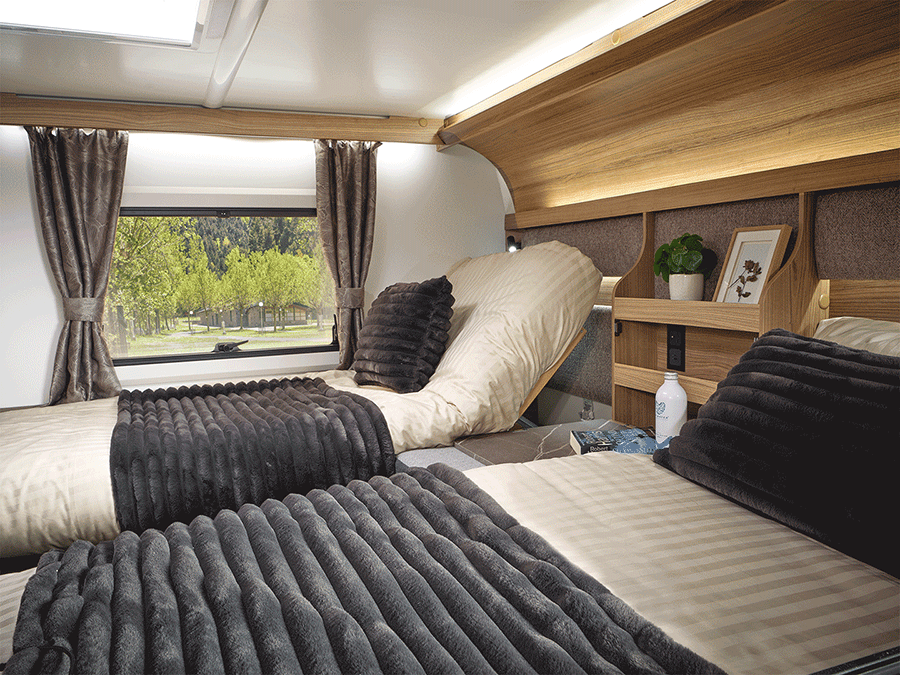

  • Fixed single and double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
  • Deep-fill bed boxes with enhanced storage capacity (mode specific)
  • Ceiling mounted mechanically operated Alu-Line transverse drop down double bed with sprung base (model specific)
  • ‘Honeycore’ foam fixed bed mattress construction and stylish fabric covering (model specific)
  • Sprung beech bed box tops for additional comfort
  • Full wall headboard (model specific)

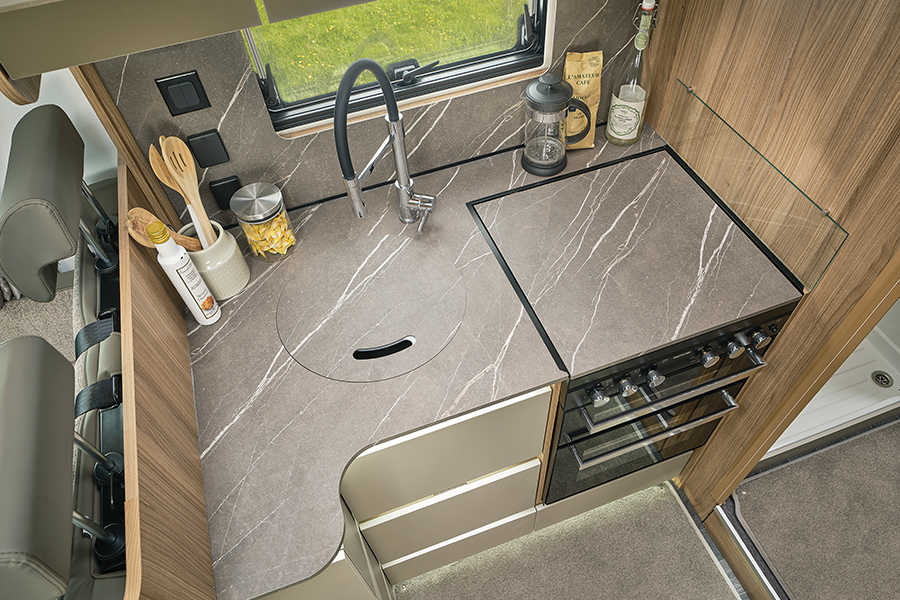

  • ‘Slate Grey’ marble finish kitchen worktop laminate
  • ‘Cashmere’ satin finish kitchen drawer fascias with soft-close drawers and handles
  • Domestic standard kitchen units featuring durable worktop surfaces and heavy duty drawers with positive catches
  • Drop down hob cover worktop in matching ‘Slate Grey’ marble finish
  • Drop down kitchen worktop extension (model specific)
  • Branded Perspex kitchen splashback with chrome detailing
  • Splash proof retractable roller blinds for kitchen window
  • Kitchen glass splashguard (model specific)
  • Atainless steel round kitchen sink with concealed fixings, swan-neck mixer tap, washing up bowl and drainer

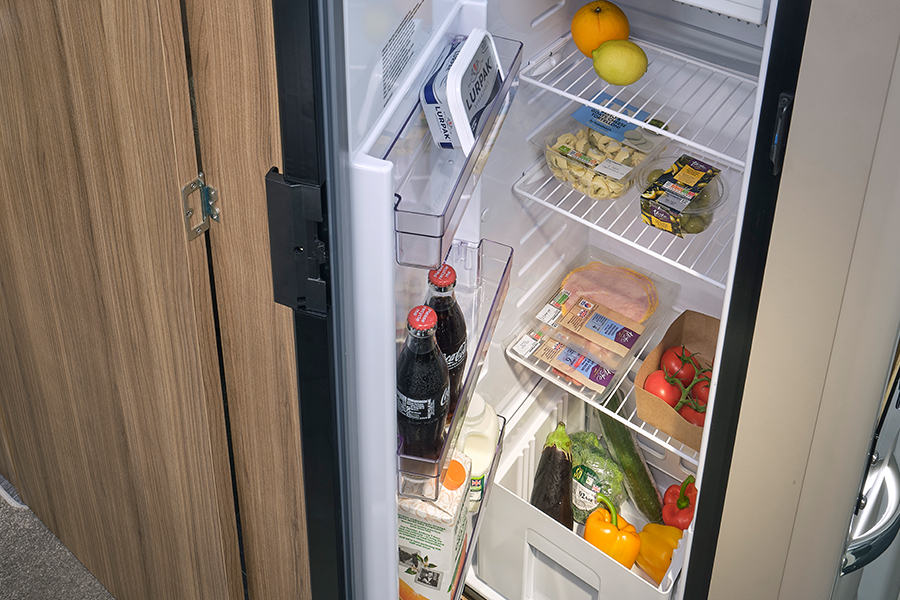

  • Dometic 10 series 153 litre electronic fridge freezer with universal handed door mechanism (model specific)
  • Dometic 134 litre tower refrigerator (model specific)
  • Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
  • Thetford dual-fuel hob with electric hotplate and 3 gas burners
  • Branded 800 watt microwave oven
  • ‘Slate Grey’ marble finish washroom worktop laminate
  • Satin finish locker doors and vanity units in washroom

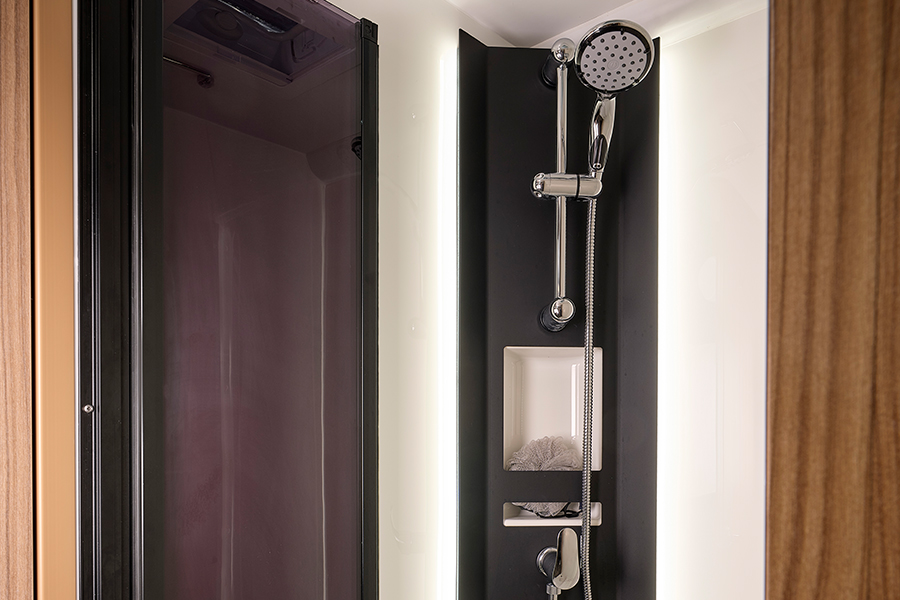

  • Lined shower cubicle with bi-fold partition door and integral lighting
  • Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
  • Ceiling mounted pull down hanging rail on shower hood
  • Countertop inset washroom hand basin with ceramic ball mixer tap
  • Thetford 12v electric flush toilet with removable cassette on wheels
  • 230v power inlet for mains hook-up
  • Truma 100 watt lightweight flexible solar panel
  • Exterior 230v socket
  • Branded 110 ampere/hour premium leisure battery
  • Dedicated under floor leisure battery storage locker
  • Switch mode battery charger with 20 amp output
  • RCD/MCB protection for mains electric system
  • 230v power supply with up to six interior sockets
  • 12v ambient and task light fittings throughout
  • Twin flexible reading lights with integral USB sockets
  • 12v directional spotlights with integral USB sockets in rear bedrooms and rear lounges (model specific)
  • 12v spotlights in rear lounges (model specific)
  • Feature control panel with USB socket
  • Floor lighting to highlight step
  • Additional ambient over locker lighting
  • Additional low level task lighting
  • 25 metre mains connecting lead
  • Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating
    • Touch screen user-friendly control panel
    • Dual fuel 3.4 Kw gas and 3 Kw electric power sources
    • Programmable daily timer
    • Panel radiator in washroom
    • Panel radiator in living area (model specific)
  • 95 litre external insulated fresh water tank with frost heater, baffles and level sensor
  • 95 litre external waste water tank with baffles and level sensor
  • Propane/Butane gas 30mb regulator mounted in gas locker compartment
  • Whale Aqua smart II on-board water pump with Aquasource ‘lay flat’ filling pipe
  • Pressurised hot and cold fresh water system and self-priming pump
  • Rigid pipe waste plumbing system
  • Exterior gas BBQ point
  • Crash tested vehicle design featuring reinforced floors and strengthened furniture to enhance passenger safety
  • AL-KO outriggers fitted to AMC Chassis for enhanced floor strength
  • ‘Fix and Go’ tyre repair kit
  • Ergonomically shaped rear travel seats (model specific)
  • Steel frame seat base supports for all travelling seats (model specific)
  • Steel framed structural bulkhead to support rear-facing designated travelling seats (model specific)
  • Smoke alarm and carbon monoxide alarm
  • European Whole Vehicle Type Approval
  • Supplied with a 6-year transferable bodyshell integrity warranty and a 3-year transferable manufacturers warranty*
  • 4-year transferable extension to bodyshell integrity warranty (making 10 years in total) and/or 3-year transferable extension to manufacturer’s warranty (making 6 years in total) available as cost options*
  • *Terms and conditions apply. Please visit baileyofbristol.co.uk/warranties-servicing for more information

• Optional ‘Portobello’ soft furnishings
• Bespoke motorhome bedding sets to co-ordinate with soft furnishings (model specific)
• AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)

Year last produced
2024
Range
Autograph
Series
Series 3
Model
79-4T
Designated Travelling Seats
4
Berths
4
Cab
Peugeot Cab (Graphite)
Engine
165bhp / 2179cc
Chassis
AL-KO AMC
Roof Profile
Low Profile
Overall Body Length
7.931m / 26′0″
Overall Cab Width (mirrors folded)
2.489m / 8′2″
Overall Habitation Width (inc marker lights)
2.422m / 7′11″
Overall Height
2.710m / 8′11″
Fitted Awning Length
4.5m
Tyre Sizes
225 / 75R 16CP
MTPLM
3850kg
MRO
3276kg
Total User Payload
574kg
Max Recommended Braked Trailer Weight
2000kg
Thermal Insulation Grade
3
Gross Train Weight
5500kg
Gas Locker Capacity
2 x 6kg
Fresh Water Tank
95 litres
Waste Water Tank
93.5 litres

Bed Sizes:

Front Double
2.17m x 1.32m (7'1" x 4'4") Measured from the widest point
N/S Rear Single
1.95m x 0.72m (6'5" x 2'4") Measured from the widest point
O/S Rear Single
1.86m x 0.72m (6'1" x 2'4") Measured from the widest point
